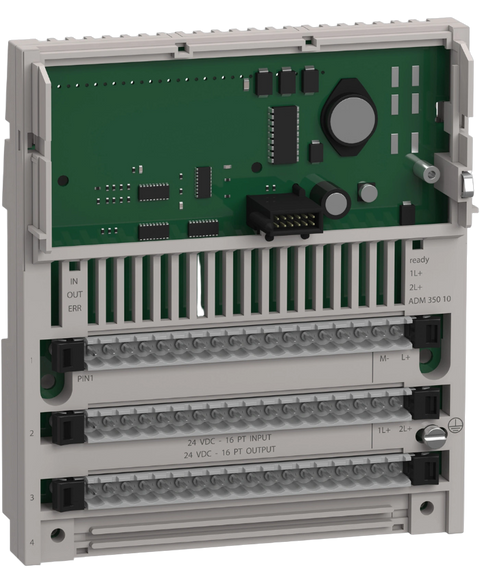

Schneider Electric 170ADM35010
The 170ADM35010 from Schneider Electric forms part of the Modicon Momentum series. This discrete I,O base features 16 inputs and 16 outputs, arranged in two groups of eight outputs and one group of 16 inputs, making it versatile for various applications.
This Schneider Electric 170ADM35010 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Mixed io range and is referenced internally as PartLogic SKU PL26805669442.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete solid state I/O base DC |
| Group of channels | 2 groups of 8 outputs | 1 group of 16 inputs |
| Discrete input number | 16 |
| Discrete input voltage | 24 V DC (voltage limits: - 3...30 V) |
| Discrete input logic | Positive |
| Discrete output number | 16 |
| Discrete output logic | Positive |
| Discrete output voltage | <= 30 V DC for solid state switch | 24 V DC for solid state switch |
| Input resistance | 4 kOhm |
| Peak output current | 5 A |
| Fault type | Overload on output |
| Response time | < 0.1 ms from state 0 to state 1 on output | < 0.1 ms from state 1 to state 0 on output | 2.2 ms from state 0 to state 1 on input | 3.3 ms from state 1 to state 0 on input |
| Voltage state 1 guaranteed | 11...30 V |
| Voltage state 0 guaranteed | -3...5 V |
| Current state 1 guaranteed | >= 2.5 mA |
| Current state 0 guaranteed | <= 1.2 mA |
| Discrete output current | 4 A per group | 8 A per module | 0.5 A per point |
| Maximum leakage current | 1 mA 24 V DC output circuit |
| Maximum voltage drop | <0.5 V at state 1 for output circuit |
| Typical current consumption | 250 mA at 24 V DC |
| Power dissipation in W | 6 W |
| Isolation between channels and bus | 500 V AC |
| Terminals description PLC n°1 | (L+)PW_POS | (8)IN_DIS#8 | (6)IN_DIS#6 | (5)IN_DIS#5 | TB | (2)IN_DIS#2 | (12)IN_DIS#12 | (M-)PW_NEG | (15)IN_DIS#15 | (13)IN_DIS#13 | (10)IN_DIS#10 | (3)IN_DIS#3 | (9)IN_DIS#9 | (7)IN_DIS#7 | (1)IN_DIS#1 | (11)IN_DIS#11 | (14)IN_DIS#14 | (16)IN_DIS#16 | (4)IN_DIS#4 |
| Terminals description PLC n°2 | (10)OUT_DIS#10 | (6)OUT_DIS#6 | (8)OUT_DIS#8 | (1)OUT_DIS#1 | (11)OUT_DIS#11 | (4)OUT_DIS#4 | (5)OUT_DIS#5 | (15)OUT_DIS#15 | (2L+)PW_POS | TB_1 | (7)OUT_DIS#7 | (2)OUT_DIS#2 | (14)OUT_DIS#14 | (9)OUT_DIS#9 | (13)OUT_DIS#13 | (3)OUT_DIS#3 | (1L+)PW_POS | (12)OUT_DIS#12 |
| Local signalling | 16 LEDs for channel status |
| Height | 141.5 mm |
| Width | 125 mm |
| Depth | 47.5 mm |
| Net weight | 0.2 kg |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Marking | CE |
| Product certifications | UL | CSA |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.900 cm |
| Package 1 Width | 18.200 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 406.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.407 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 46.000 kg |
