Schneider Electric 170ADI35000

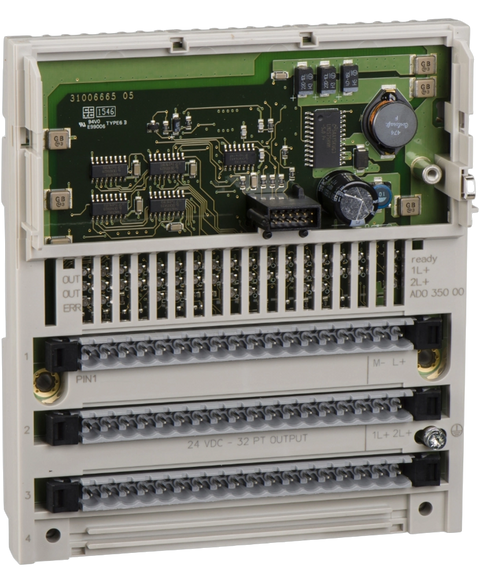

The Schneider Electric 170ADI35000 operates as a discrete input module, designed for use within the Modicon series. It accommodates up to 32 discrete input points, organized into two groups of 16. The module functions on a 24 VDC supply and features an IP20 protection rating, ensuring suitability for non-harsh environments.
This Schneider Electric 170ADI35000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26801350359.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete inputs base DC |
| Group of channels | 2 groups of 16 inputs |
| Discrete input number | 32 |
| Discrete input logic | Positive |
| Voltage range | - 3...30 V |
| Isolation between channels and bus | 500 V AC |
| Terminals description PLC n°1 | (5)IN_DIS#5 | (L+)PW_POS | (12)IN_DIS#12 | (9)IN_DIS#9 | (14)IN_DIS#14 | (7)IN_DIS#7 | (4)IN_DIS#4 | (6)IN_DIS#6 | (10)IN_DIS#10 | (2)IN_DIS#2 | (8)IN_DIS#8 | (M-)PW_NEG | (16)IN_DIS#16 | (13)IN_DIS#13 | (15)IN_DIS#15 | (11)IN_DIS#11 | (1)IN_DIS#1 | (3)IN_DIS#3 | TB |
| Terminals description PLC n°2 | TB_1 | (13)IN_DIS#29 | (4)IN_DIS#20 | (1L+)PW_POS | (11)IN_DIS#27 | (8)IN_DIS#24 | (6)IN_DIS#22 | (16)IN_DIS#32 | (1)IN_DIS#17 | (2)IN_DIS#18 | (2L+)PW_POS | (10)IN_DIS#26 | (5)IN_DIS#21 | (9)IN_DIS#25 | (3)IN_DIS#19 | (12)IN_DIS#28 | (14)IN_DIS#30 | (7)IN_DIS#23 | (15)IN_DIS#31 |
| Local signalling | 32 LEDs for channel status |
| Height | 141.5 mm |
| Width | 125 mm |
| Depth | 47.5 mm |
| Net weight | 0.2 kg |
| Protective treatment | TC |
| Marking | CE |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.900 cm |
| Package 1 Width | 18.300 cm |
| Package 1 Length | 25.900 cm |
| Package 1 Weight | 388.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.466 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 46.000 kg |
