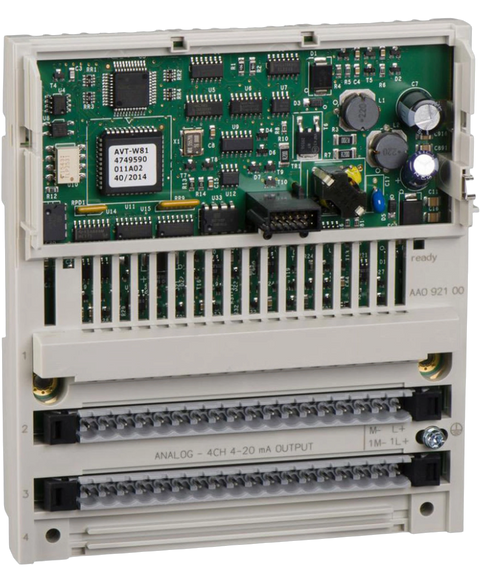

Schneider Electric 170AAO92100
The Schneider Electric 170AAO92100 is an analog output base module designed for use within the Modicon Momentum series. It features four analog outputs that utilize a full 16 bits signed format, providing precise data representation.
This Schneider Electric 170AAO92100 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output range and is referenced internally as PartLogic SKU PL26805547324.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Modicon Momentum |
| Part Number | 170AAO92100 |
| EAN | 3595861147720 |
| Weight | 0.50 lbs (0.23 kg) |
| Type | Analog Output Base |
| Analog Outputs | 4 Outputs |
| Data Format | Full 16 Bits Signed Format |
| Update Time | 2 ms |
| Isolation Between the Channels and Ground | 500V AC for 1 Minute |
| Maximum Power Dissipation | 8.5 Watts |
| Internal Reverse Polarity Protection | Supported |
| Module Format | Standard |
| Approximate Dimensions | 4.9 x 1.9 x 5.6 inches |
| Maximum Operating Humidity | 95% (non-condensing) |
| Maximum Storage Humidity | 95% (non-condensing) |
| Operating Temperature | 0 to 60 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
| Brand | Schneider Electric |
