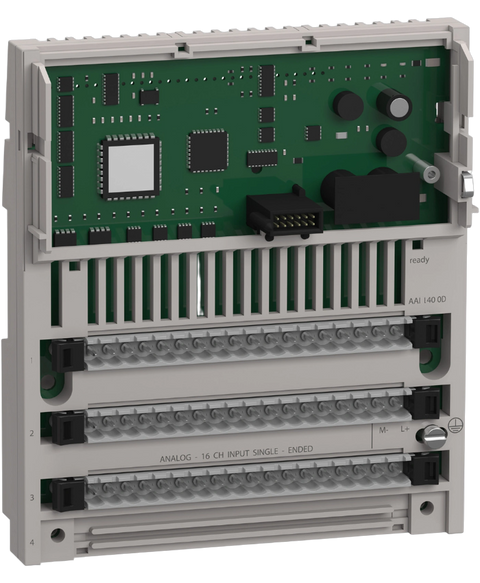

Schneider Electric 170AAI14000
The Modicon series 170AAI14000 from Schneider Electric serves as an analog input base module with extensive capabilities. Featuring 16 single-ended analog inputs, it delivers data in a full 16-bit signed format and accommodates various input scales, including 10 V, 16 mA, and 5 Vsignals.
This Schneider Electric 170AAI14000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26805669697.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Momentum automation platform |
| Product or component type | Analogue input base |
| Analogue input number | 16 |
| Type of filter | Low pass input filter 10 kHz |
| Data format | Full 16 bits signed |
| Absolute accuracy error | +/- 0.15 % of full scale 25 °C +/- 10 V | +/- 0.15 % of full scale 25 °C +/- 5 V | +/- 0.25 % full scale 25 °C 4...20 mA | +/- 0.25 % full scale 60 °C +/- 10 V | +/- 0.25 % full scale 60 °C +/- 5 V | +/- 0.45 % full scale 60 °C 4...20 mA |
| Full scale | 10 V +/- 10 V | 16 mA 4...20 mA | 5 V +/- 5 V |
| Update time | 25 ms |
| Permissible common mode voltage | 100 V 47...63 Hz DC between channels to ground | 250 V 47...63 Hz AC between channels to ground |
| External power requirement | +/- 30 V DC |
| Reverse polarity protection | Internal |
| Analogue input type | Single ended 4...20 mA | Single ended +/- 10 V | Single ended +/- 5 V |
| Analogue input resolution | 12 bits 4...20 mA | 12 bits + sign +/- 10 V | 12 bits + sign +/- 5 V |
| Input impedance | < 0.25 Ohm | > 2200 kOhm |
| Temperature drift | 30 %oFS/°C +/- 10 V | 60 %oFS/°C 4...20 mA |
| Typical current consumption | 305 mA at 24 V DC |
| Power dissipation in W | 5.55 W |
| Isolation between channels and ground | 1780 V AC |
| Electrical connection | 2 connectors for removable terminal blocks |
| Protection type | Internal 2 A slow-blow |
| Associated fuse rating | 500 mA, fast blow |
| Local signalling | 16 LEDs for channel status |
| Height | 125 mm |
| Width | 141.5 mm |
| Depth | 47.5 mm |
| Net weight | 0.215 kg |
| Protective treatment | TC |
| Marking | CE |
| Product certifications | UL | FM Class 1 Division 2 | CSA |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 0…95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 385.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.85 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 75.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 46 kg |
