Schneider Electric 170AAI03000

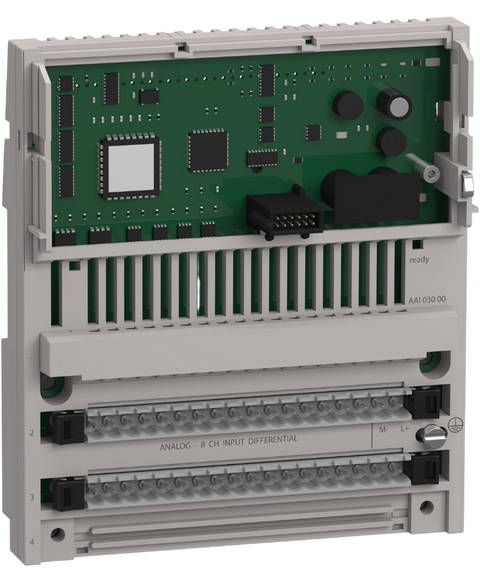

The Schneider Electric 170AAI03000 is designed as an analog input base capable of handling eight differential channels. It supports a 16-bit signed data format and has a conversion time of 12 ms.
This Schneider Electric 170AAI03000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26801411251.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Momentum automation platform |
| Product or component type | Analogue input base |
| Analogue input number | 8 |
| Data format | Full 16 bits signed |
| Absolute accuracy error | +/- 0.13 % full scale 25 °C 1...5 V | +/- 0.19 % full scale 60 °C 1...5 V | +/- 0.21 % full scale 25 °C +/- 5 V | +/- 0.26 % full scale 60 °C +/- 5 V | +/- 0.27 % full scale 25 °C +/- 10 V | +/- 0.27 % full scale 25 °C 4...20 mA | +/- 0.32 % full scale 25 °C +/- 20 mA | +/- 0.32 % full scale 60 °C +/- 10 V | +/- 0.38 % full scale 60 °C 4...20 mA | +/- 0.41 % full scale 60 °C +/- 20 mA |
| Conversion time | 12 ms 8 |
| Permissible common mode voltage | 100 V 47...63 Hz DC between channels to ground | 250 V 47...63 Hz AC between channels to ground |
| Common mode rejection | > 80 dB between channels to ground |
| External power requirement | < 382 mA DC | 20.4...28.8 V DC | 24 V DC |
| Reverse polarity protection | Internal |
| Analogue input type | Differential +/-20 mA | Differential 4...20 mA | Differential +/- 10 V | Differential +/- 5 V | Differential 1...5 V | Differential +/- 20 mA |
| Analogue input resolution | 14 bits + sign +/- 20 mA | 15 bits + sign 4...20 mA | 14 bits + sign +/- 10 V | 14 bits + sign +/- 5 V | 15 bits + sign 1...5 V |
| Input impedance | 250 kOhm | > 0.1 kOhm |
| Isolation between channels | +/- 200 V |
| Isolation between channels and bus | 500 V AC |
| Isolation between channels and ground | 500 V AC |
| Electrical connection | 2 connectors for removable terminal blocks |
| Local signalling | 1 LED green for ready | 8 LEDs for channel status |
| Height | 125 mm |
| Width | 141.5 mm |
| Depth | 47.5 mm |
| Net weight | 0.215 kg |
| Protective treatment | TC |
| Marking | CE |
| Product certifications | FM Class 1 Division 2 | CSA | UL |
| Standards | EN 50081-2 | IEC 1131 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 0…95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 400.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.421 kg |
