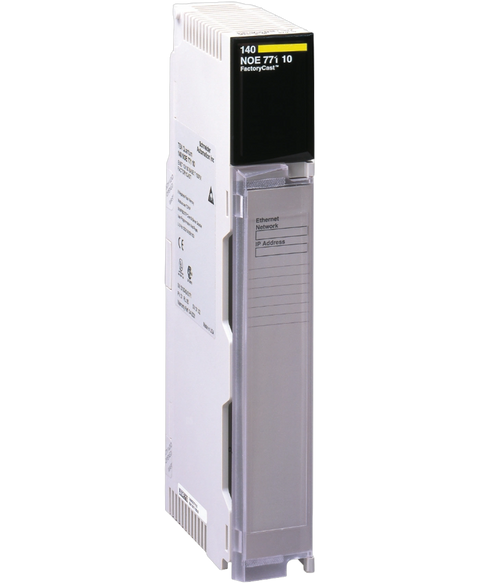

Schneider Electric 140NOE77101
The Modicon Quantum 140NOE77101 from Schneider Electric is categorized as an advanced communication module. It employs the Ethernet Modbus TCP,IP protocol for effective networking, enabling transparent data handling and management in industrial settings.
This Schneider Electric 140NOE77101 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805523998.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | Ethernet network TCP/IP module |
| Concept | Transparent Ready |
| Web server | Class B30 |
| Web services | Diagnostics via predefined web pages | Rack viewer | Data Editor (via PC terminal) |
| Communication service | SNMP network management | Bandwidth management | Global Data | I/O scanning | Modbus TCP messaging | FDR server |
| Communication port protocol | Ethernet Modbus TCP/IP |
| Physical interface | MT/RJ - 100BASE-FX fiber optic | RJ45 - 10BASE-T/100BASE-TX twisted pair |
| Transmission rate | 10/100 Mbit/s |
| Redundancy | Yes hot standby redundant architecture |
| Supply | Via the power supply of the rack |
| Marking | CE |
| Local signalling | 1 LED for 10 Mbps or 100 Mbps data rate (10 MB/100 MB) | 1 LED for collision detection (Coll) | 1 LED for download mode (Kernel) | 1 LED for Ethernet module fault (Fault) | 1 LED for Ethernet network status (RUN) | 1 LED for full-duplex mode (Fduplex) | 1 LED for module ready (Ready) | 1 LED for network active (Link) | 1 LED for rack operational (Active) | 1 LED for transmission/reception activity (TxAct/RxAct) |
| Current consumption | 750 mA at 5 V DC |
| Module format | Standard |
| Net weight | 0.345 kg |
| IP degree of protection | IP20 |
| Product certifications | cUL | UL 508 |
| Standards | CSA C22.2 No 142 | FM Class 1 Division 2 |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 | 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 4500 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.0 cm |
| Package 1 Width | 17.0 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 560.0 g |
