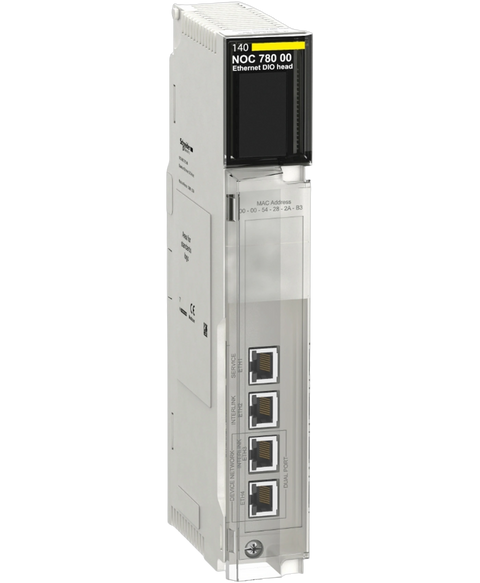

Schneider Electric 140NOC78000
The Schneider Electric 140NOC78000 functions as an Ethernet I,O head module designed for efficient communication. It supports Ethernet,IP and Modbus TCP protocols, capable of handling 128 simultaneous connections, making it suitable for numerous applications.
This Schneider Electric 140NOC78000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805526614.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | Ethernet I/O head module |
| Product compatibility | 140CPU6xxxx |
| Communication port protocol | Modbus TCP | EtherNet/IP |
| Exchange mode | Full duplex |
| Maximum number of connections | 128 |
| Transmission rate | 10/100 Mbit/s |
| Redundancy | Yes hot standby redundant architecture |
| Topology | Redundant ring | Daisy chain loop |
| Web server | Embedded |
| Communication service | NTP time synchronization | Embedded 4-port switch | CIP Explicit messaging (client messaging) | FDR server | Quality of Service (QoS) | CIP implicit messaging (I/O communication) | SNMP agent | Device Type Manager (DTM) | DHCP/BootP server |
| Ethernet service | Rapid Scanning Tree Protocol (RSTP) |
| Transmission support medium | Twisted pair |
| Port Ethernet | RJ45: 10BASE-T/100BASE-TX |
| Marking | CE |
| Supply | Via the power supply of the rack |
| Local signalling | 1 LED (green) for communication on the bus (Active) | 1 LED (green) for configuration status (Ready) | 1 LED (green/red) for module status (Mod Status) | 1 LED (green/red) for network communication status (Net Status) | 1 LED (green/red) for device network status (Net Status 1) | 1 LED (green/red) for extended DIO network status (Net Status 2) |
| Module format | Standard |
| Net weight | 0.345 kg |
| Standards | EN 61131-1 | IEC 61000-4-16 | EN 55011 | UL 508 | EN 61131-2 | FM Class 1 Division 2 | CSA C22.2 No 142 |
| Product certifications | Merchant Navy | GOST | hazardous location class 1, division 2 | LR | C-Tick |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % at 60 °C without condensation |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 32.0 cm |
| Package 1 Weight | 557.0 g |
