Schneider Electric 140ERT85420

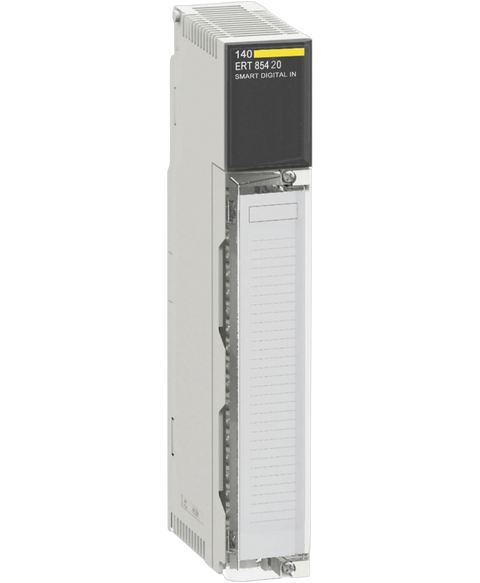

The Schneider Electric 140ERT85420 is a multifunction input module designed for versatility in industrial applications. It features 32 inputs and 40 terminals, making it suitable for diverse connectivity needs.
This Schneider Electric 140ERT85420 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Event recorder range and is referenced internally as PartLogic SKU PL26805526146.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | Multifunction input module |
| Number of terminals | 40 |
| Function of module | Status logging counting 500 Hz | Status monitoring on discrete inputs | Time and date stamped event logging |
| Time synchronisation protocol | DCF77 | IRIG-B |
| Product compatibility | Unity Pro V4.1 - without IRIG-B or TXSNTP100 function | Unity Pro V5.0 - without IRIG-B or TXSNTP100 function | Unity Pro V6.0 - without IRIG-B or TXSNTP100 function | Unity Pro V7.0 |
| Group of channels | 2 groups of 16 inputs for process input |
| Discrete input number | 1 discrete input(s) at 24 V for clock signal input | 32 discrete input(s) at 24...125 V for process input |
| Switching voltage | 125 V at 1 mA for process input | 24 V at 6 mA for process input | 48 V at 2.5 mA for process input | 60 V at 2.5 mA for process input |
| Maximum power consumption in W | 7.5 W for process input |
| Insulation | By optocoupler for clock signal input |
| Insulation between group of channels | By optocoupler |
| Anti bounce filtering | Configurable from 0 to 255 ms |
| Input state | Inversion configurable |
| Acquisition time | 1 ms for clock signal input |
| Input current | 5 mA for clock signal input |
| Electrical connection | Cable - shielded cable <600 m for process input | Cable - unshielded cable <400 m for process input |
| Connections - terminals | Screw terminal block |
| Local signalling | 1 LED (green) for communication on the bus (Active) | 1 LED (green) for self test OK, module ready (R) | 1 LED (red) for fault (F) | 32 LEDs for status of inputs (1 to 32) |
| Current consumption | 300 mA at 5 V DC bus | 20 mA at 24...125 V DC external power supply per group of channel |
| Module format | Standard |
| Net weight | 0.45 kg |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 | 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80...2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Protective treatment | TC |
| Standards | HazLoc | UL 508 |
| Product certifications | UL | C-Tick | CSA Class 1 Division 2 | LR | GOST | Merchant Navy |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.0 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 425.0 g |
