Schneider Electric 140DDI85300

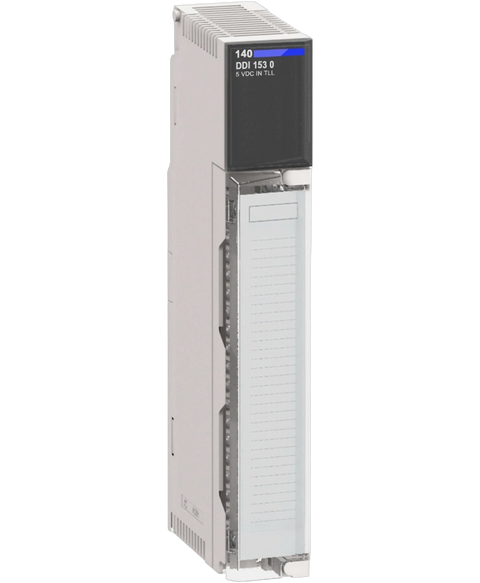

The Schneider Electric 140DDI85300 is an input module from the Modicon Quantum series. This discrete input module features 32 inputs and operates within a voltage range of 10 to 60 VDC. It offers a swift response time of 4 ms and requires 300 mA of bus current for operation.
This Schneider Electric 140DDI85300 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26805550811.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | Dc discrete input modules |
| Discrete input number | 32 |
| Group of channels | 4 |
| Logic input | Positive (sink) |
| Input voltage limits | 10...60 V |
| Input voltage | 12 V 5…10 mA DC | 24 V 6…30 mA DC | 48 V 2…15 mA DC | 60 V 1…5 mA DC |
| Voltage state 1 guaranteed | 9...12 V 12 V +/- 5 % | 11...24 V 24 V - 15...20 % | 34...48 V 48 V - 15...20 % | 45...60 V 60 V - 15...20 % |
| Voltage state 0 guaranteed | 0...1.8 V 12 V +/- 5 % | 0...10 V 48 V - 15...20 % | 0...12.5 V 60 V - 15...20 % | 0...5 V 24 V - 15...20 % |
| Absolute maximum voltage | 75 V |
| Addressing requirement | 2 input words |
| Response time | 4 ms from state 0 to state 1 | 4 ms from state 1 to state 0 |
| Switching frequency | <= 100 Hz |
| Isolation between group and bus | 2500 Vrms DC for 1 minute |
| Isolation between group | 700 Vrms DC for 1 minute |
| Power dissipation | 1 W + (0.25 x number of points on) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) | 32 LEDs (green) for input status |
| Bus current requirement | 300 mA |
| Module format | Standard |
| Net weight | 0.295 kg |
| Standards | EN/IEC 61131-2 | CSA C22.2 No 142 | UL 508 |
| Product certifications | RCM | Merchant Navy | UL | EAC | CSA | CE | hazardous location class 1, division 2 |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 | 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.3 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 31.2 cm |
| Package 1 Weight | 428.0 g |
