Schneider Electric 140DAI54300

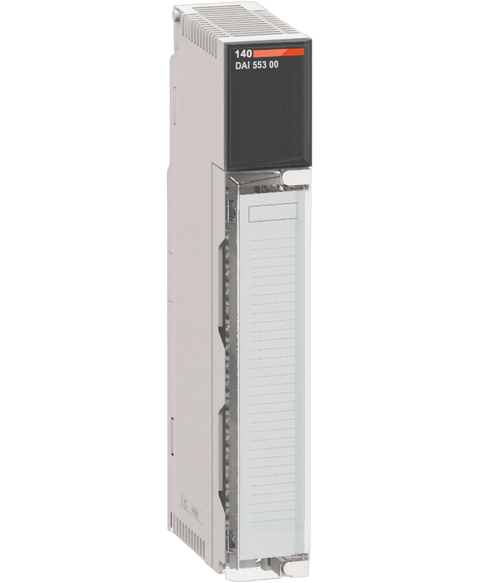

The Schneider Electric 140DAI54300 is a discrete input module designed for the Modicon Quantum series. It supports inputs of 115V AC across 16 channels when deployed in various applications.
This Schneider Electric 140DAI54300 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26805664540.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | VAC discrete input modules |
| Software name | Unity Pro | Concept | ProWORX 32 |
| Discrete input number | 16 |
| Group of channels | 2 |
| Addressing requirement | 1 input word |
| Discrete input voltage | 115 V AC |
| Input current | 11.1 mA at 57...63 Hz | 13.2 mA at 47...53 Hz |
| Voltage state 1 guaranteed | 79...132 V AC at 57...63 Hz | 85...132 V AC at 47...53 Hz |
| Voltage state 0 guaranteed | 0...20 V AC at 57...63 Hz | 0...20 V AC at 47...53 Hz |
| Input impedance | 12000 Ohm capacitive at 57...63 Hz | 14400 Ohm capacitive at 47...53 Hz |
| Network frequency limits | 47…63 Hz |
| Maximum leakage current | 2.1 mA |
| Absolute maximum input | 132 V continuous | 156 V 10 s | 200 V 1 cycle |
| Response time | 4.9...0.75 ms x line cycle Off-On | 7.3...12.3 ms On-Off |
| Isolation between group | 1780 Vrms for 1 minute |
| Isolation between group and bus | 1780 Vrms for 1 minute |
| Bus current requirement | 180 mA |
| Maximum power dissipation in W | 5.5 W |
| Local signalling | 1 LED (green) for bus communication is present (Active) | 1 LED (red) for external fault detected (F) | 16 LEDs (green) for input status |
| Marking | CE |
| Module format | Standard |
| Net weight | 0.3 kg |
| Standards | CSA C22.2 No 142 | UL 508 |
| Product certifications | cUL | FM Class 1 Division 2 |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 | 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.3 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 31.2 cm |
| Package 1 Weight | 436.0 g |
