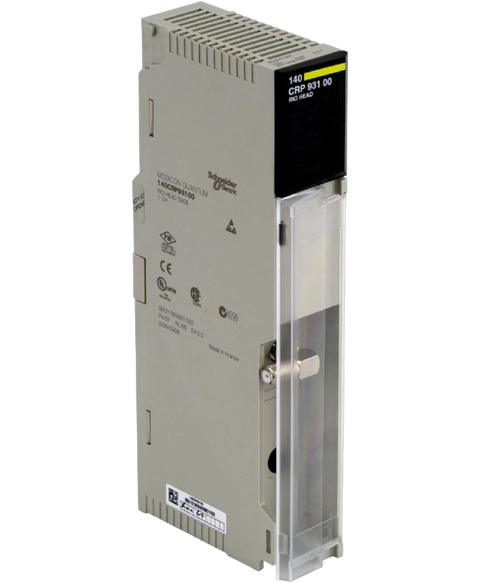

Schneider Electric 140CRP93100
The Schneider Electric 140CRP93100 module serves as a RIO head-end adaptor within the Modicon Quantum series. This device is designed for critical communications with a single channel, supporting up to 31 drops per network.
This Schneider Electric 140CRP93100 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Ethernet range and is referenced internally as PartLogic SKU PL26805547654.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | RIO head-end adaptor module |
| Product compatibility | Quantum 200/500/800 series | Symax (any mix) |
| Maximum drops/network | 31 |
| I/O words/drop | 64 I/64 O |
| Type of cable | 75 Ohm coaxial cable |
| Transmission rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 1 female connector F, elbowed with single cable |
| Diagnostics startup | Power up | Memory check | LAN controller check |
| Power dissipation in W | 3 W 1 channel |
| Marking | CE |
| Bus current requirement | 600 mA 1 channel |
| Module format | Standard |
| Product certifications | FM Class 1 Division 2 |
| Standards | UL 508 | CUL | CSA C22.2 No 142 |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 | 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.3 cm |
| Package 1 Width | 16.3 cm |
| Package 1 Length | 31.4 cm |
| Package 1 Weight | 500.0 g |
