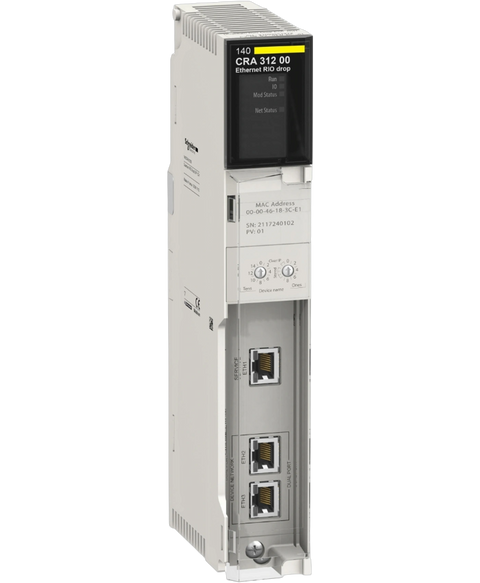

Schneider Electric 140CRA31200
The Schneider Electric 140CRA31200 functions as a RIO drop adaptor and operates on Ethernet. This device is designed with a single channel and supports both Ethernet IP and Modbus TCP communication protocols.
This Schneider Electric 140CRA31200 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Remote io range and is referenced internally as PartLogic SKU PL26805563975.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum |
| Product or component type | Ethernet RIO drop adaptor |
| Number of port | 3 |
| Integrated connection type | Ethernet IP/Modbus TCP for service port | Ethernet IP/Modbus TCP for device network |
| Communication port protocol | Ethernet IP/Modbus TCP |
| Communication service | The input data are collected and published to the remote I/O head adaptor | Output modules are updated with the data received from remote I/O head adaptor |
| Topology | Daisy chain loop |
| Local signalling | 1 LED (green/red) for module status (Mod Status) | 1 LED (green/red) for network communication status (Net Status) | 1 LED (green) for RUN | 1 LED (red) for I/O |
| Product compatibility | 140CRP31200 |
| Environmental characteristic | Standard environment | Hazardous location class I division 2 conforming to EN/IEC 61131-1 |
| Width | 167 mm |
| Height | 50 mm |
| Net weight | 0.554 kg |
| Product certifications | CE | UL 508 | C-Tick |
| Standards | IEC 55011 | CSA C22.2 No 142 | IEC 61000-4-16 |
| IP degree of protection | IP20 conforming to IEC 61131-2 | IP20 conforming to IEC 60527 |
| Overvoltage category | Class I conforming to IEC 61131-2 |
| Ambient air temperature for operation | 0…60 °C conforming to IEC 60068-2-2 | 0…60 °C conforming to IEC 60068-2-2 |
| Ambient air temperature for storage | -40…85 °C conforming to IEC 60068-2-2 | -40…85 °C conforming to IEC 60068-2-2 |
| Vibration resistance | 3.5 mm constant amplitude (f= 0.5…8.4 Hz) conforming to IEC 61131-2 | 1 gn constant acceleration (f= 8.4…150 Hz) conforming to IEC 61131-2 |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3000 m |
| Relative humidity | 93 % conforming to IEC 60068 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.900 cm |
| Package 1 Width | 16.400 cm |
| Package 1 Length | 31.300 cm |
| Package 1 Weight | 593.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.650 kg |
