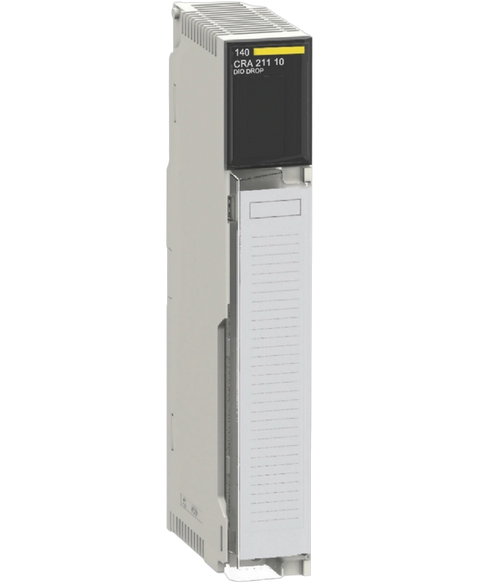

Schneider Electric 140CRA21110
The Schneider Electric 140CRA21110 serves as a drop interface within the Modicon Quantum series. It functions effectively under a rated supply voltage of 115,230V AC, making it versatile for different electrical setups.
This Schneider Electric 140CRA21110 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules > Remote io range and is referenced internally as PartLogic SKU PL26805541653.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | DIO drop interface |
| Number of port | 1 single |
| [Us] rated supply voltage | 115/230 V AC |
| Supply voltage limits | 85…276 V |
| Supply frequency | 47...63 Hz |
| Maximum supply current | 0.2 A 115 V | 0.4 A 230 V |
| Inrush current | 10 A 115 V | 20 A 230 V |
| rated power in VA | 50 VA |
| Associated fuse rating | 1.5 A |
| Output voltage | 5.1 V |
| nominal output current | 3 A |
| Minimum load current | 0 A |
| Short-circuit protection | With |
| Output overvoltage protection | With |
| I/O words | 30 I/32 O |
| Typical backplanes | 3 positions | 2 positions | 6 positions | 16 positions | 10 positions | 4 positions |
| Diagnostics startup | RAM address | RAM | Checksum |
| Diagnostics run time | RAM address | RAM | Checksum |
| Power dissipation in W | 11 W |
| Connections - terminals | Terminal block, 7 poles |
| Module format | Standard |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 | 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Protective treatment | TC |
| Standards | UL 508 |
| Product certifications | CSA Class 1 Division 2 | UL | DNV | C-Tick | GOST |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 16.500 cm |
| Package 1 Length | 31.500 cm |
| Package 1 Weight | 689.000 g |
