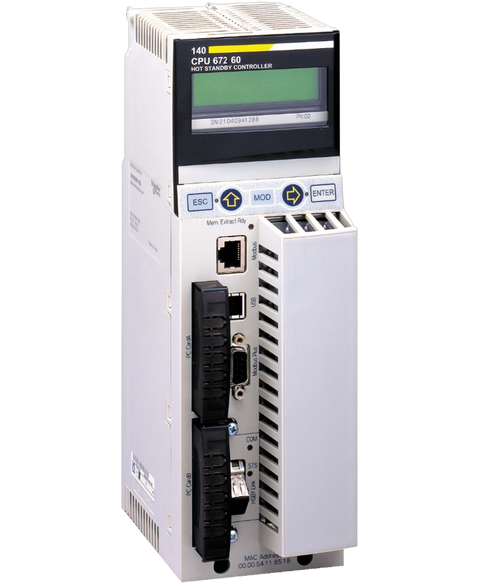

Schneider Electric 140CPU67260
The Schneider Electric 140CPU67260 is a Unity Processor optimized for various automation applications. Featuring a clock speed of 266 MHz, this unit provides significant processing capability for complex tasks.
This Schneider Electric 140CPU67260 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Programmable logic controllers range and is referenced internally as PartLogic SKU PL26805523626.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | Unity processor |
| Mode of transmission | Multi mode |
| Clock frequency | 266 MHz |
| Number of slots | 10 | 16 | 4 | 6 | 2 |
| Number of racks | 2 - local rack(s) |
| Number of distributed I/O station | 63 station(s) - 1 rack(s) - 3 Modbus Plus network(s) |
| Number of remote I/O station | 31 - 2 rack(s) per S908 remote I/O | 31 - 2 rack(s) per ethernet Quantum remote I/O | 31 - 2 rack(s) per ethernet X80 remote I/O |
| Discrete I/O number | 31744 inputs, 31744 outputs - remote | 8000 inputs, 8000 outputs - distributed - per network Modbus Plus | Unlimited (31 drops of 28 slots max) - ethernet remote I/O | 0 - local - forbidden in Hot Standby application |
| Analogue I/O number | 500 inputs, 500 outputs - distributed - per network Modbus Plus | Unlimited (31 drops of 28 slots max) - ethernet remote I/O | 1984 inputs,1984 outputs - remote | 0 - local - forbidden in Hot Standby application |
| Application specific I/O | Accurate time stamping | Counter | Serial link | High-speed interrupt inputs |
| Communication service | Ethernet router |
| Number of optional modules | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections | 1 USB | 2 AS-Interface - distributed | 4 AS-Interface - remote | 6 Ethernet TCP/IP - local | 6 Modbus Plus - local | 6 Profibus DP - local | 1 Modbus (RS232/485 Modbus/ASCII) |
| Integrated connection type | 1 Modbus Plus with | 1 Modbus with | 1 USB with | 1 optic fibre with Hot Standby |
| Checks | Process control | Hot standby |
| Memory description | Expandable 7168 kB - program with PCMCIA card | Expandable 8 MB - file storage with PCMCIA card | Internal RAM 3072 kB - 1536 kB for data |
| Switch function | Key switch memory port on/off |
| Application structure | 1 periodic fast task - forbidden in Hot Standby application | 128 I/O interrupt tasks - forbidden in Hot Standby application | 128 interrupt tasks - forbidden in Hot Standby application | 32 timer interrupt tasks - forbidden in Hot Standby application | 4 auxiliary tasks - forbidden in Hot Standby application | 1 cyclic/periodic master task - |
| Number of instructions per ms | 10.28 Kinst/ms 100 % Boolean | 10.07 Kinst/ms 65 % Boolean and 35 % numerical |
| System overhead | 0.2 ms for fast task | 1 ms for master task |
| Bus current requirement | 2760 mA |
| Local signalling | 1 LED (yellow) for Ethernet activity (COM) | 1 LED (yellow) for configuration status (STS) |
| Electrical connection | 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network | 1 connector, connector type: RJ45 for connecting Modbus bus | 1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 km |
| Product certifications | Misc (Marine) | GOST | CE | CSA | UL |
| Standards | HazLoc |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.0 cm |
| Package 1 Width | 19.0 cm |
| Package 1 Length | 33.0 cm |
| Package 1 Weight | 1.446 kg |
