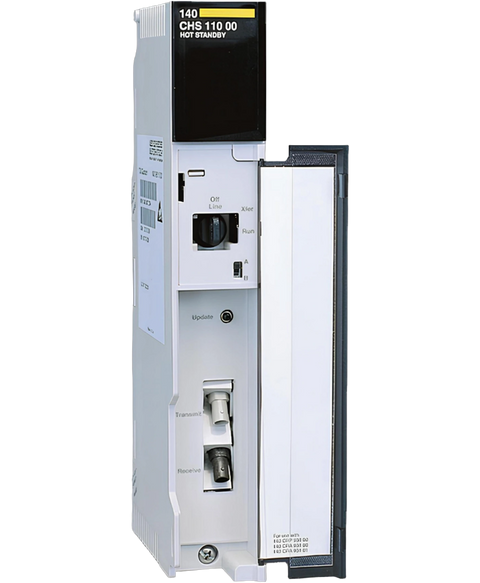

Schneider Electric 140CHS11000
The Schneider Electric 140CHS11000 is a standby module from the Modicon Quantum series. It supports ProWORX 32 NXT V2.0 and is designed for robust operation in various environments.
This Schneider Electric 140CHS11000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Hot standby range and is referenced internally as PartLogic SKU PL26906251100.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | Hot standby module |
| Software designation | Concept version >= V2.0 | ProWORX 32 NxT version V2.0 |
| Product compatibility | All legacy 140CPU with LL984 language | All 140CPU43412A/534 with IEC language |
| Input/output type | 800 Series | Sy/Max (remote I/O only) | Quantum |
| Transmission rate | 10 Mbit/s |
| Transmission support medium | Fiber optic 3 m |
| Switching time | 13...48 ms |
| Electrical connection | 1 connector RJ45 for fiber optic receiver | 1 connector RJ45 for fiber optic transmitter |
| Local signalling | 1 LED (amber) for module in standby | 1 LED (green) for communication with I/O module | 1 LED (green) for control process | 1 LED (green) for ready module | 1 LED (red) for communication error |
| Bus current requirement | 700 mA |
| Module format | Standard |
| Net weight | 1.06 kg |
| RFI immunity | 27…1000 MHz 10 V/m conforming to IEC 60801-3 |
| Resistance to electrostatic discharge | 4 kV contact | 8 kV air |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31 cm |
| Package 1 Weight | 500 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.015 kg |
