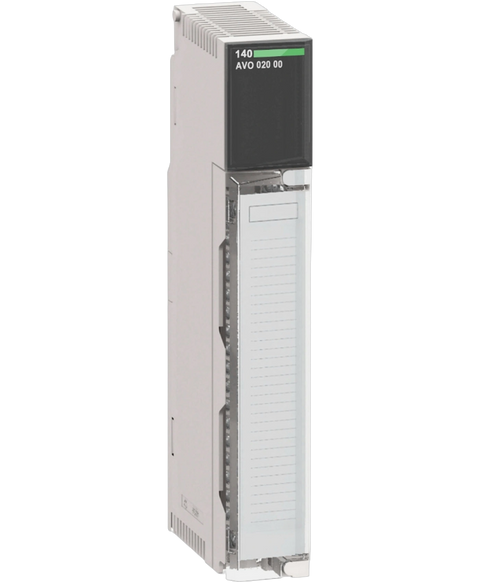

Schneider Electric 140AVO02000
The 140AVO02000 from Schneider Electric is part of the Modicon Quantum series, featuring an analog output module. With four outputs and a resolution of 12 bits, this module reliably delivers precise analog signals for various applications.
This Schneider Electric 140AVO02000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output range and is referenced internally as PartLogic SKU PL26805606598.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | Analogue output module |
| Analogue output number | 4 |
| Addressing requirement | 4 output words |
| Analogue output range | +/- 10 V >= 1000 Ohm bipolar voltage | +/- 5 V >= 500 Ohm bipolar voltage | 0...10 V >= 1000 Ohm unipolar voltage | 0...5 V >= 500 Ohm unipolar voltage |
| Analogue output resolution | 12 bits |
| Analogue output current | -10…10 mA |
| Source resistance | 0.1 Ohm |
| Maximum cable distance between devices | 400 m |
| Absolute accuracy error | +/- 0.15 % of full scale at 25 °C |
| Linearity | +/- 1 LSB |
| Accuracy drift according to temperature | 0.003 % of full scale/°C unipolar | 0.004 % of full scale/°C bipolar | 0.005 % of full scale/°C maximum unipolar | 0.007 % of full scale/°C maximum bipolar |
| Isolation between channels | 500 V for 1 minute 47...63 Hz AC |
| Isolation between channels and bus | 780 V for 1 minute AC |
| Update time | 3 ms |
| Setting time | 700 µs to +/- 0.1 % of the final value maximum |
| Bus current requirement | 700 mA |
| Maximum power dissipation in W | 4.5 W |
| Associated fuse rating | 0.063 mA 3 AG fast blow at 250 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) | 1 LED (red) for external fault | 4 LEDs (green) for channel is turned on | 4 LEDs (red) for channel fault |
| Module format | Standard |
| Net weight | 0.3 kg |
| Product certifications | FM Class 1 Division 2 | cUL |
| Standards | UL 508 | CSA C22.2 No 142 |
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.0 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 467.0 g |
