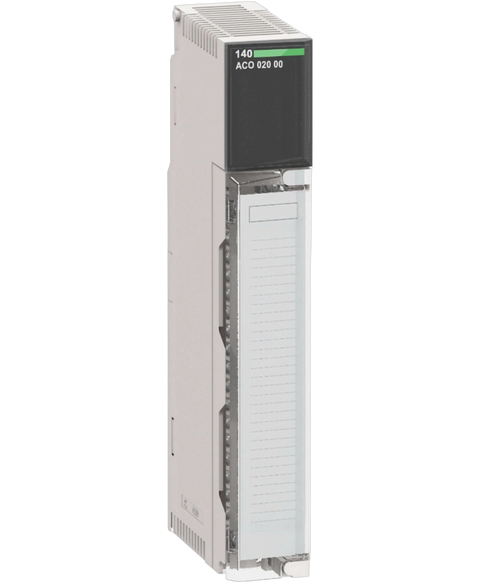

Schneider Electric 140ACO02000
The 140ACO02000 is an analog output module from Schneider Electric’s Modicon Quantum series, featuring four output points for versatile control. This module operates within a current output range of 4 to 20 mA, suited for various automation tasks.
This Schneider Electric 140ACO02000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output range and is referenced internally as PartLogic SKU PL26801443467.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | Analogue output module |
| Analogue output number | 4 |
| Addressing requirement | 4 output words |
| Loop voltage | 12…30 V DC |
| Maximum voltage drop | <30 V 20 mA |
| Analogue output range | 4...20 mA 0...4096 counts, 12 bits bipolar current |
| Absolute accuracy error | +/- 0.20 % of full scale at 25 °C |
| Linearity | +/- 1 LSB |
| Accuracy drift according to temperature | +/- 0.004 % of full scale/°C | +/- 0.007 % of full scale/°C maximum |
| Isolation between channels | 500 V 47...63 Hz AC | 750 V for 1 minute DC |
| Update time | 3 ms |
| Setting time | 900 µs to +/- 0.1 % of the final value |
| Fault type | Open circuit 4...20 mA |
| Bus current requirement | 480 mA |
| Maximum power dissipation in W | 5.3 W |
| External power requirement | 12...30 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) | 1 LED (red) for external fault | 4 LEDs (green) for channel is turned on | 4 LEDs (red) for channel fault |
| Module format | Standard |
| Net weight | 0.3 kg |
| Product certifications | FM Class 1 Division 2 | cUL |
| Standards | CSA C22.2 No 142 | UL 508 |
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.8 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 457.0 g |
