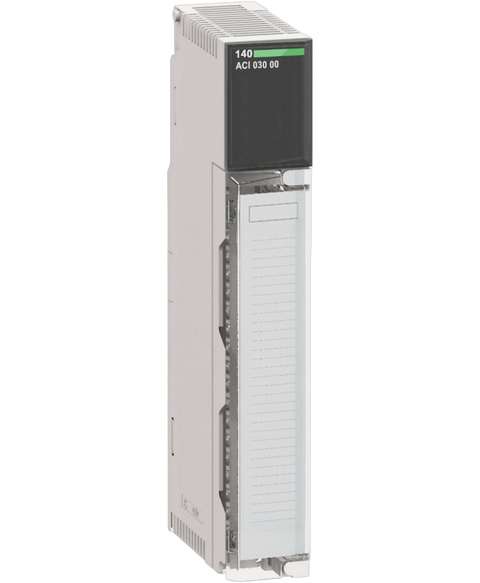

Schneider Electric 140ACI03000
The 140ACI03000 from Schneider Electric is an analog input module designed for the Modicon Quantum series. This device facilitates high-precision measurement and is compatible with the Modicon Quantum Automation Platform, offering an input range of 1-5 V , 4-20 mA.
This Schneider Electric 140ACI03000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26805427048.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Quantum automation platform |
| Product or component type | Analogue input module |
| Type of filter | Single pole low pass - 3 dB at 15 Hz +/- 20 % |
| Analogue input number | 8 |
| Input type | Differential |
| Addressing requirement | 9 input words |
| Analogue input resolution | 12 bits |
| Linear measuring range | 1...5 V | 4...20 mA |
| Absolute maximum input | 50 V DC | 25 mA |
| Input impedance | 250 Ohm current +/- 0.01 % | > 20 MOhm voltage |
| Absolute accuracy error | +/- 0.05 % of full scale | +/- 0.1 % of full scale maximum |
| Linearity error | +/- 0.04 % |
| Accuracy drift according to temperature | +/- 0.0025 % of full scale/°C | <= 0.005 % of full scale/°C |
| Common mode rejection | > - 72 dB 60 Hz |
| Isolation between channels and bus | 1000 V DC | 3000 V DC for 60 s |
| Isolation between channels | 30 V DC |
| Update time | 5 ms |
| Fault type | Broken wire 4...20 mA | Undervoltage range 1...5 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) | 1 LED (red) for external fault | 8 LEDs (green) for channel is turned on | 8 LEDs (red) for channel fault |
| Bus current requirement | 240 mA |
| Power dissipation in W | 2 W |
| Module format | Standard |
| Net weight | 0.3 kg |
| Standards | UL 508 | CSA C22.2 No 142 |
| Product certifications | FM Class 1 Division 2 | cUL |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2 | 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80…1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.8 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31.0 cm |
| Package 1 Weight | 450.0 g |
