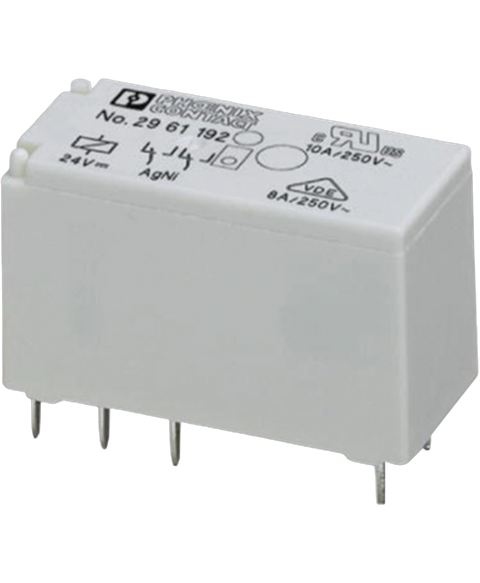

Phoenix Contact 2961192
plug-in miniature power relay, with power contact, 2 pdts, input voltage 24 v dc
This Phoenix Contact 2961192 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL27014061969.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 85 °C |
| Approvals | UL, VDE, cULus |
| Case/Package | DIP |
| Coil Current | 17 mA |
| Coil Power | 410 mW |
| Coil Resistance | 1.44 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24 V |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 8 A |
| Contact Material | Silver |
| Current Rating | 100 mA |
| Depth | 12.7 mm |
| Height | 15.7 mm |
| Lead Free | Lead Free |
| Length | 29 mm |
| Max Current Rating | 8 A |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 250 V |
| Min Operating Temperature | -40 °C |
| Mount | PCB, Through Hole |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Operate Time | 7 ms |
| Power Consumption | 50 mW |
| REACH SVHC | No |
| Relay Type | General Purpose |
| Release Time | 3 ms |
| RoHS | Compliant |
| Switching Current | 8 A |
| Switching Voltage | 250 V |
| Termination | PC Pin |
| Test Voltage | 5 kV |
| Throw Configuration | DPDT |
| Voltage Rating | 250 V |
| Voltage Rating (AC) | 250 V |
| Weight | 15.3 g |
| Width | 12.7 mm |
