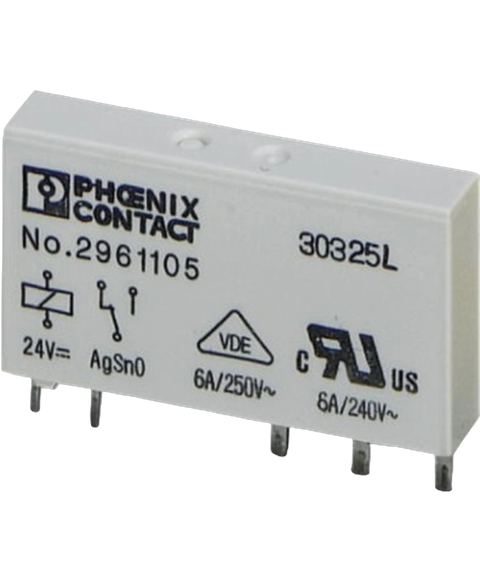

Phoenix Contact 2961105 (10 Pack)
This Phoenix Contact 2961105 (10 Pack) is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL27177560335.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 85 °C |
| Approvals | CSA, UL, VDE |
| Case/Package | SIP |
| Coil Current | 7 mA |
| Coil Power | 170 mW |
| Coil Resistance | 3.39 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24 V |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 6 A |
| Contact Material | Silver, Tin |
| Current Rating | 6 A |
| Depth | 5 mm |
| Height | 15 mm |
| Lead Free | Lead Free |
| Length | 28 mm |
| Max Current Rating | 6 A |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 250 V |
| Min Operating Temperature | -40 °C |
| Mount | PCB, Plug-In, Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 5 |
| Operate Time | 5 ms |
| Power Consumption | 140 W |
| REACH SVHC | No |
| Relay Type | General Purpose |
| Release Time | 2.5 ms |
| RoHS | Compliant |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating | 250 V |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 250 V |
| Width | 5 mm |
