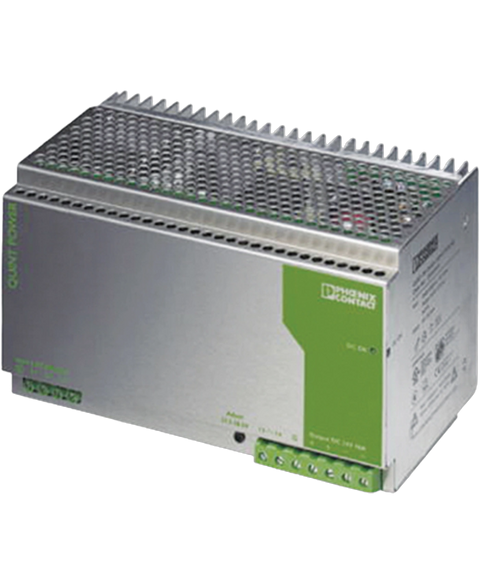

Phoenix Contact 2938646
DIN rail power supply unit 24 V DC,40 A, primary switched-mode, 3-phase
This Phoenix Contact 2938646 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26801440322.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CB, cULus, cURus |
| Current - Output 1 | 40 A |
| Current Rating | 40 A |
| Depth | 130 mm |
| Efficiency | 91 % |
| Frequency | 65 Hz |
| Isolation Voltage | 4 kV |
| Lead Free | Lead Free |
| Length | 124.968 mm |
| Max Input Voltage | 575 V |
| Max Operating Temperature | 70 °C |
| Max Output Current | 40 A |
| Max Output Voltage | 28.5 V |
| Max Power Dissipation | 960 W |
| Min Input Voltage | 320 V |
| Min Operating Temperature | -25 °C |
| Min Output Voltage | 22.5 V |
| Mount | DIN Rail |
| Number of Outputs | 1 |
| Number of Pins | 7 |
| Output Current | 40 A |
| Output Power | 960 W |
| RoHS | Compliant |
| Schedule B | 8504407018|8504407018|8504407018|8504407018|8504407018 |
| Voltage - Output 1 | 24 V |
| Voltage Rating (AC) | 575 V |
| Weight | 3.499919 kg |
