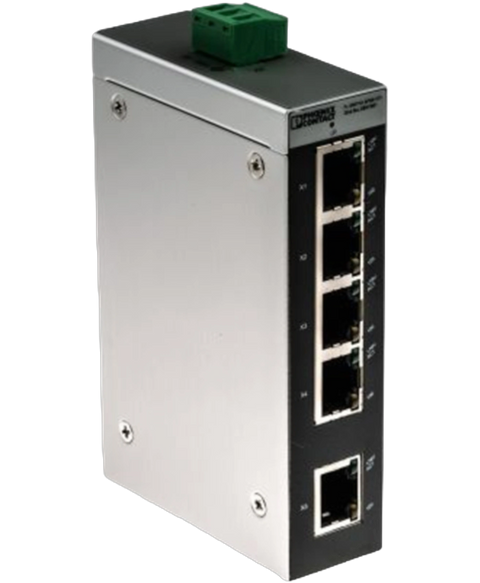

Phoenix Contact 2891001
Ethernet switch, 5 TP RJ45 ports, automatic detection of data transmission speed of 10 or 100 Mbps (RJ45), autocrossing function
This Phoenix Contact 2891001 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL27210686802.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | KC, UL |
| Data Rate | 100 Mbps |
| Housing Material | Aluminium |
| Interface | Ethernet |
| Lead Free | Lead Free |
| Length | 110 mm |
| Max Operating Temperature | 60 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -10 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | DIN Rail |
| Number of Ports | 5 |
| Operating Supply Current | 185 mA |
| Operating Supply Voltage | 24 V |
| Ratings | IP20 |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8517620050 |
| Weight | 266.399987 g |
