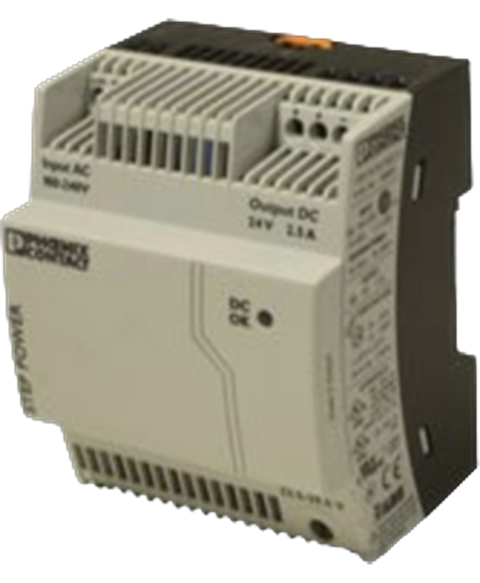

Phoenix Contact 2868651
Primary-switched STEP POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC,2.5 A
This Phoenix Contact 2868651 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26805568858.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CB, UL |
| Current - Output 1 | 2.5 A |
| Depth | 90 mm |
| Efficiency | 86 % |
| Height | 89.916 mm |
| Isolation Voltage | 4 kV |
| Length | 60.96 mm |
| Max Input Voltage | 264 V |
| Max Input Voltage (DC) | 250 V |
| Max Operating Temperature | 70 °C |
| Max Output Current | 2.5 A |
| Max Output Voltage | 29.5 V |
| Max Power Dissipation | 60 W |
| Max Voltage Rating (AC) | 264 V |
| Min Input Voltage | 85 V |
| Min Input Voltage (AC) | 85 V |
| Min Input Voltage (DC) | 95 V |
| Min Operating Temperature | -25 °C |
| Min Output Voltage | 22.5 V |
| Mount | DIN Rail |
| Nominal Input Voltage (AC) | 240 V |
| Number of Outputs | 1 |
| Output Current | 2.5 A |
| Output Power | 60 W |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage - Output 1 | 24 V |
| Weight | 300.000012 g |
| Width | 71.882 mm |
