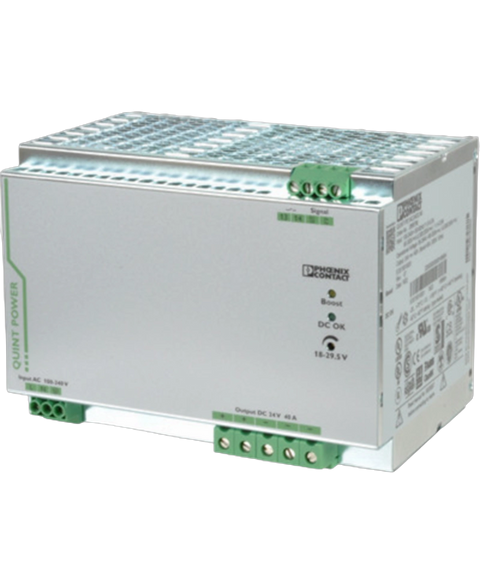

Phoenix Contact 2866789
Primary-switched QUINT POWER power supply for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 24 V DC,40 A
This Phoenix Contact 2866789 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26801432433.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CB, cULus, cURus |
| Current - Output 1 | 40 A |
| Depth | 130 mm |
| Efficiency | 92 % |
| Height | 130.048 mm |
| Isolation Voltage | 4 kV |
| Lead Free | Lead Free |
| Length | 124.968 mm |
| Max Input Voltage | 264 V |
| Max Operating Temperature | 70 °C |
| Max Output Current | 40 A |
| Max Output Voltage | 29.5 V |
| Max Power Dissipation | 960 W |
| Min Input Voltage | 85 V |
| Min Operating Temperature | -25 °C |
| Min Output Voltage | 18 V |
| Mount | DIN Rail |
| Number of Outputs | 1 |
| Output Current | 40 A |
| Output Power | 960 W |
| Output Voltage | 24 V |
| REACH SVHC | No |
| RoHS | Compliant |
| Voltage - Output 1 | 24 V |
| Weight | 3.3 kg |
| Width | 180.086 mm |
