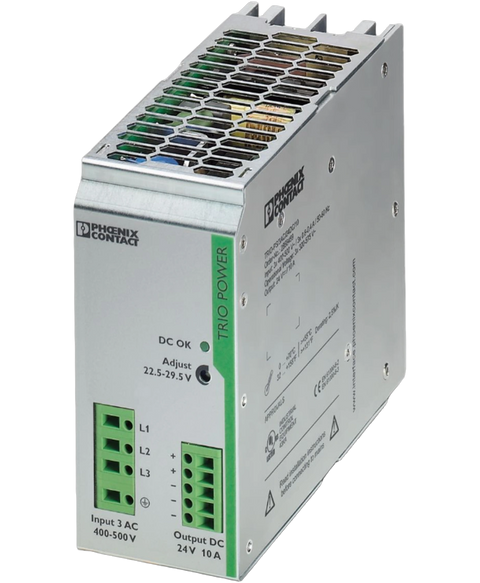

Phoenix Contact 2866459
Primary-switched TRIO POWER power supply for DIN rail mounting, input: 3-phase, output: 24 V DC,10 A
This Phoenix Contact 2866459 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26805570851.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | UL, cURus |
| Current - Output 1 | 10 A |
| Depth | 130 mm |
| Efficiency | 89 % |
| Height | 130.048 mm |
| Isolation Voltage | 4 kV |
| Lead Free | Lead Free |
| Length | 152.4 mm |
| Max Input Voltage | 575 V |
| Max Operating Temperature | 70 °C |
| Max Output Current | 10 A |
| Max Output Voltage | 29.5 V |
| Max Power Dissipation | 240 W |
| Max Voltage Rating (AC) | 550 V |
| Min Input Voltage | 320 V |
| Min Input Voltage (AC) | 340 V |
| Min Operating Temperature | -25 °C |
| Min Output Voltage | 22.5 V |
| Mount | DIN Rail |
| Nominal Input Voltage (AC) | 400 V |
| Number of Outputs | 1 |
| Output Current | 10 A |
| Output Power | 240 W |
| Output Voltage | 24 V |
| RoHS | Compliant |
| Voltage - Output 1 | 24 V |
| Weight | 1.299996 kg |
| Width | 59.944 mm |
