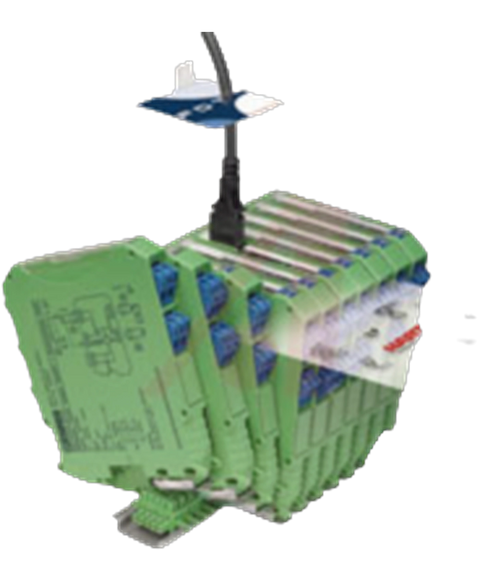

Phoenix Contact 2865434
Ex i NAMUR isolating amplifier For operating proximity sensors and switches in Ex areas. The signals are transmitted via a relay output (PDT contact) to the safe area. Line fault detection (LFD), 3-way isolation, SIL 2.
This Phoenix Contact 2865434 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26805568945.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | cUL |
| Case/Package | 125 |
| Color | Green |
| Current Rating | 21 mA |
| Height | 99 mm |
| Housing Material | Polyamide |
| Lead Free | Lead Free |
| Length | 114.5 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| Mount | DIN Rail |
| Number of Channels | 1 |
| Operating Supply Voltage | 30 V |
| Output Type | ANALOG, Digital |
| RoHS | Compliant |
| Schedule B | 8543709610, 8543709610|8543709610|8543709610|8543709610|8543709610 |
| Termination | Screw |
| Voltage Rating (DC) | 24 V |
| Width | 12.5 mm |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 24 AWG |
