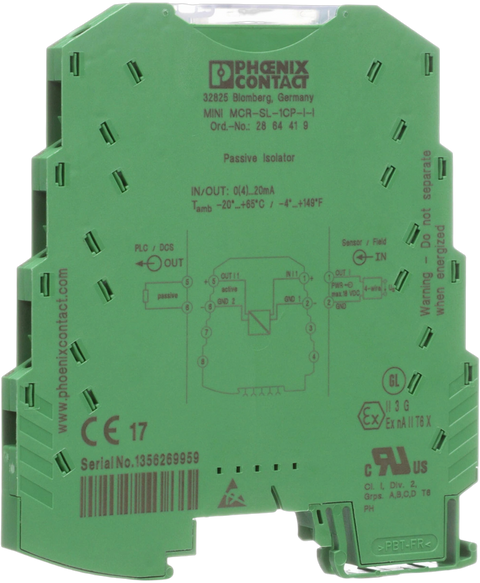

Phoenix Contact 2864419
MINI MCR-SL-1CP-I-I - MCR loop-powered isolator, 1-channel, for the electrical isolation of current signals without auxiliary power, with screw connection
This Phoenix Contact 2864419 is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies > Dc power supplies range and is referenced internally as PartLogic SKU PL26805569532.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, EN, UL |
| Color | Green |
| Current Rating | 40 mA |
| Height | 93.1 mm |
| Housing Material | PBT |
| Length | 102.5 mm |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -20 °C |
| Mount | DIN Rail |
| Number of Channels | 1 |
| Number of Positions | 1 |
| Operating Supply Voltage | 18 V |
| RoHS | Compliant |
| Termination | Screw |
| Voltage Rating | 18 V |
| Weight | 58.000006 g |
| Width | 6.2 mm |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 26 AWG |
