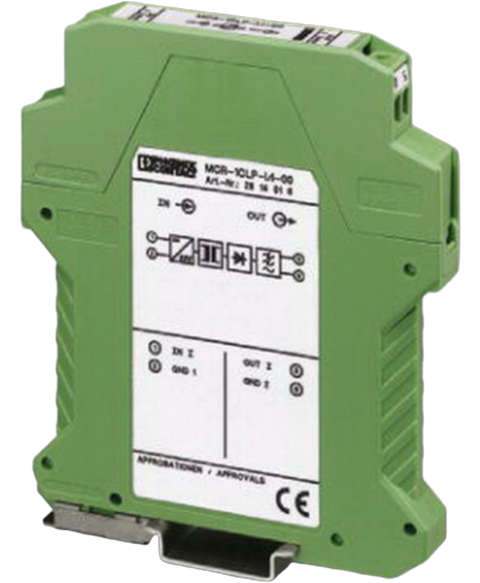

Phoenix Contact 2814016
MCR passive isolator, for the electrical isolation of current signals without auxiliary power, 1-channel, input signal: 0(4)...20 mA, output signal: 0(4)...20 mA
This Phoenix Contact 2814016 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Terminal blocks > Din rail terminal blocks range and is referenced internally as PartLogic SKU PL26805543764.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, cULus |
| Color | Green |
| Current Rating | 50 mA |
| Height | 99 mm |
| Housing Material | Polyamide |
| Lead Free | Lead Free |
| Length | 114.5 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Mount | DIN Rail |
| Number of Channels | 1 |
| Operating Supply Voltage | 30 V |
| Packaging | Bulk |
| RoHS | Compliant |
| Termination | Screw |
| Voltage Rating | 30 V |
| Weight | 101.200001 g |
| Width | 12.5 mm |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 24 AWG |
