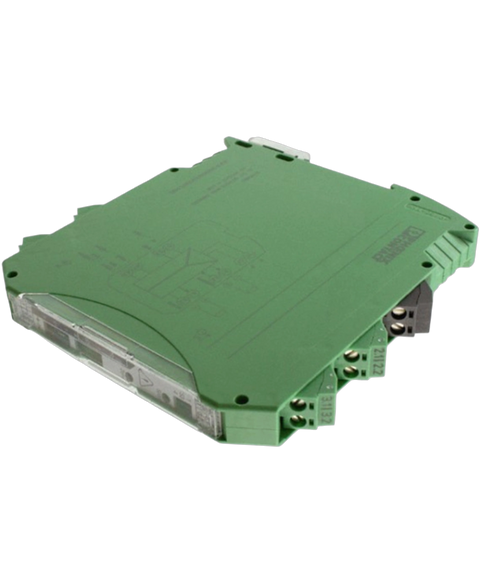

Phoenix Contact 2811297
Isolating amplifier with safe electrical isolation and wide-range power supply (24 V ... 230 V AC,DC). DIP switches on the front, over 1600 signal conversions can be set. Standard configuration (IN 0 ... 10 V,OUT 0 ... 20 mA), screw connection, SIL.
This Phoenix Contact 2811297 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Terminal blocks > Din rail terminal blocks range and is referenced internally as PartLogic SKU PL26805570683.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Color | Green |
| Connector Type | Plug |
| Height | 99 mm |
| Housing Material | Polyamide |
| Length | 114.5 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Number of Channels | 1 |
| Operating Supply Voltage | 230 V |
| Packaging | Bulk |
| RoHS | Compliant |
| Termination | Screw |
| Voltage Rating | 230 V |
| Weight | 167.199988 g |
| Width | 12.5 mm |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 24 AWG |
