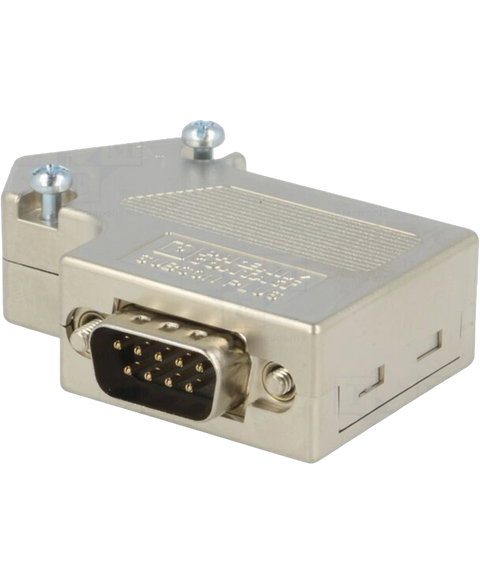

Phoenix Contact 2708232
D-SUB connector, 9-pos., male connector, 35 degrees cable entry, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks
This Phoenix Contact 2708232 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805540793.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Metal |
| Connector Type | D-Sub, Plug, Screw, Signal |
| Current Rating | 1 A |
| Depth | 16.6 mm |
| Features | Shielded |
| Gender | Male |
| Height | 39.4 mm |
| Lead Free | Lead Free |
| Length | 58 mm |
| Material | ABS |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -20 °C |
| Mount | Cable, Free Hanging |
| Number of Contacts | 9 |
| Number of Pins | 9 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Pitch | 2.77 mm |
| Ratings | IP40 |
| RoHS | Compliant |
| Termination | Terminal Block |
| Voltage Rating | 60 V |
| Voltage Rating (AC) | 60 V |
| Weight | 39.999986 g |
| Width | 16.6 mm |
| Wire/Cable Diameter | -8.4 mm |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 26 AWG |
