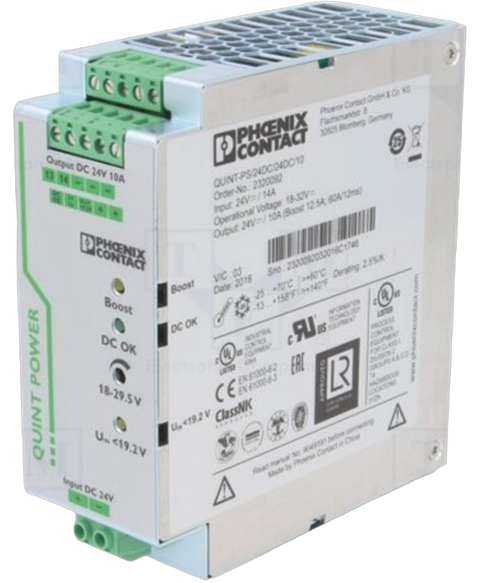

Phoenix Contact 2320092
QUINT-PS,24DC,24DC,10 Primary-switched QUINT DC,DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 24 V DC, output: 24 V DC,10 A
This Phoenix Contact 2320092 is supplied brand new by PartLogic for machine wiring, control cabinet connections, industrial communication, automation systems and maintenance applications. It forms part of our Industrial automation > Cabling > Pre assembled cables range and is referenced internally as PartLogic SKU PL26983658921.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CB, UL, VDE, cULus |
| Case/Package | Module |
| Current - Output 1 | 10 A |
| Depth | 48 mm |
| Efficiency | 92 % |
| Height | 130.048 mm |
| Isolation | Isolated |
| Lead Free | Lead Free |
| Length | 124.968 mm |
| Max Operating Temperature | 70 °C |
| Max Power Dissipation | 240 W |
| Min Operating Temperature | -25 °C |
| Mount | DIN Rail |
| Nominal Input Voltage | 24 V |
| Nominal Input Voltage (DC) | 24 V |
| Number of Outputs | 1 |
| Number of Pins | 12 |
| Output Current | 10 A |
| Output Voltage | 24 V |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Voltage - Output 1 | 24 V |
| Weight | 900 g |
| Width | 48.006 mm |
