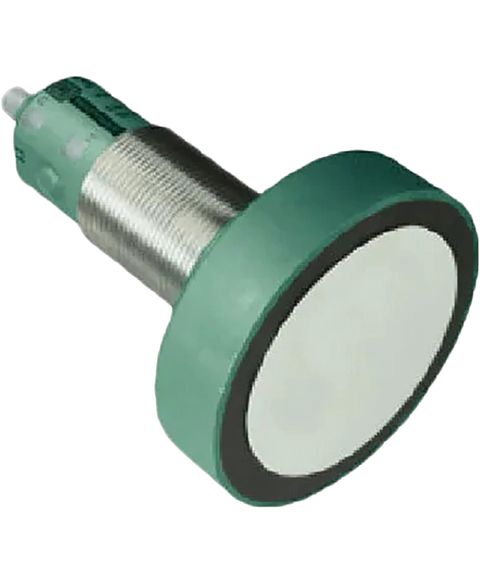

Pepperl+Fuchs UC6000-30GM-IUR2-V15
Ultrasonic sensor, programmable, 400mm–6m range, 10–30VDC.
This Pepperl+Fuchs UC6000-30GM-IUR2-V15 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Ultrasonic sensors > Cylindrical range and is referenced internally as PartLogic SKU PL26805403033.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Frequency | 65 kHz |
| Housing Material | Stainless Steel |
| Max Operating Temperature | 70 °C |
| Max Output Current | 20 mA |
| Max Output Voltage | 10 V |
| Max Supply Voltage | 30 V |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -25 °C |
| Min Output Voltage | 0 V |
| Min Supply Voltage | 10 V |
| Min Supply Voltage (DC) | 10 V |
| Number of Pins | 5 |
| Output Voltage | 10 V |
| Outside Diameter | 73 mm |
| Ratings | IP65 |
| REACH SVHC | No |
| Response Time | 35 ms |
| RoHS | Compliant |
| Sensing Method | Ultrasonic |
| Switching Frequency | 65 kHz |
| Termination | Plug |
| Thread Size | M30 |
