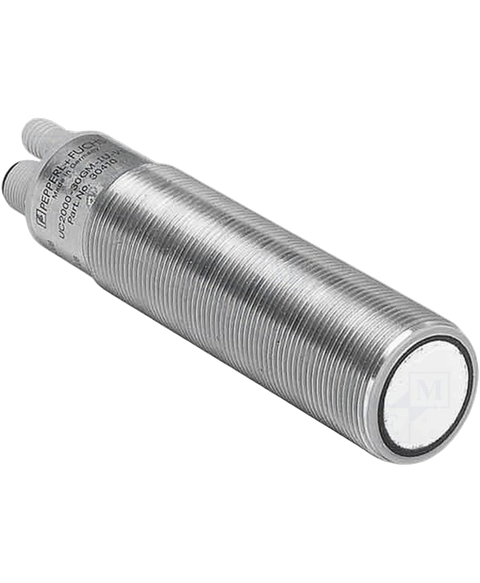

Pepperl+Fuchs UC2000-30GM-IUR2-V15
Pepperl+Fuchs UC2000-30GM-IUR2-V15 Ultrasonic Proximity Sensor, 30mm Cylindrical, Diffuse, 80-2000mm Range, Analog, M12 5-Pin
This Pepperl+Fuchs UC2000-30GM-IUR2-V15 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Ultrasonic sensors > Cylindrical range and is referenced internally as PartLogic SKU PL26960442600.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, UL |
| Diameter | 30 mm |
| Frequency | 180 kHz |
| Housing Material | Stainless Steel |
| Length | 141.5 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -25 °C |
| Number of Pins | 5 |
| Operating Supply Voltage | 30 V |
| Power Consumption | 900 mW |
| Ratings | IP65 |
| REACH SVHC | No |
| Response Time | 65 ms |
| RoHS | Compliant |
| Sensing Method | Ultrasonic |
| Switching Current | 20 mA |
| Switching Frequency | 180 kHz |
| Termination | Connector |
