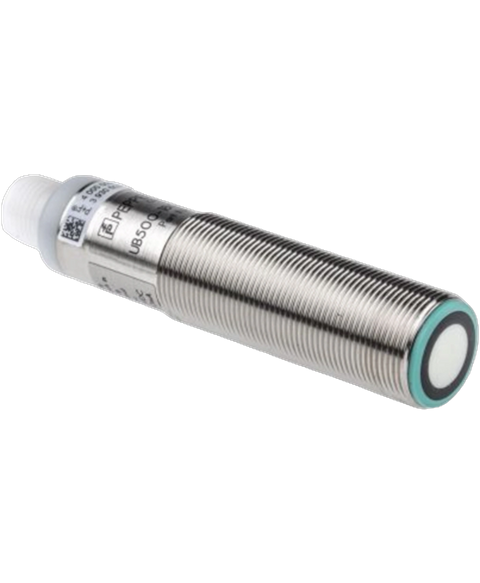

Pepperl+Fuchs UB500-18GM75-E5-V15
Pepperl+Fuchs UB500-18GM75-E5-V15 Ultrasonic Proximity Sensor, 18mm Cylindrical, Diffuse, 50-500mm, PNP NO,NC, M12 5-Pin
This Pepperl+Fuchs UB500-18GM75-E5-V15 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Ultrasonic sensors > Cylindrical range and is referenced internally as PartLogic SKU PL26805412797.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Diameter | 18 mm |
| Frequency | 380 kHz |
| Height | 85 mm |
| Housing Material | Brass |
| Length | 85 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 10 V |
| Number of Pins | 5 |
| Operating Supply Voltage | 30 V |
| Ratings | IP65 |
| REACH SVHC | No |
| RoHS | Compliant |
| Sensing Method | Ultrasonic |
| Switching Current | 200 mA |
| Switching Frequency | 8 Hz |
| Termination | Connector |
