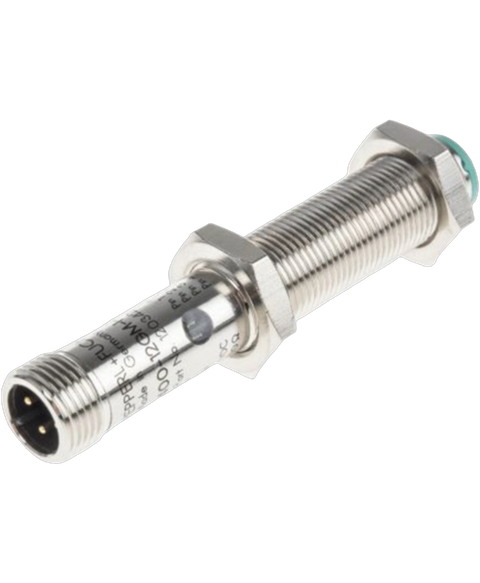

Pepperl+Fuchs UB400-12GM-I-V1
Pepperl+Fuchs UB400-12GM-I-V1 ultrasonic sensor, 30–400mm, 4–20mA.
This Pepperl+Fuchs UB400-12GM-I-V1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Ultrasonic sensors > Cylindrical range and is referenced internally as PartLogic SKU PL26805423478.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Diameter | 12 mm |
| Housing Material | Brass |
| Length | 70 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 4 |
| Operating Supply Voltage | 30 V |
| Ratings | IP67 |
| RoHS | Compliant |
| Switching Current | 20 mA |
| Termination | Connector |
