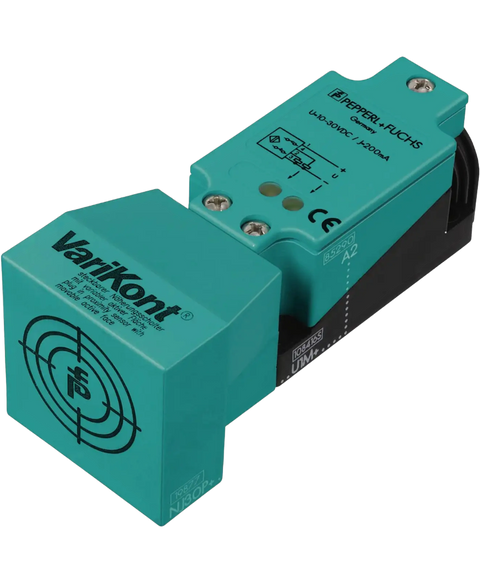

Pepperl+Fuchs NJ30+U1+E2
Inductive proximity sensor, 30mm range, DC, screw terminal.
This Pepperl+Fuchs NJ30+U1+E2 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805612550.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Depth | 118 mm |
| Housing Material | PBT |
| Length | 40 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Mount | Flush |
| Operating Supply Voltage | 60 V |
| Ratings | IP68 |
| RoHS | Non-Compliant |
| Switching Current | 200 mA |
| Termination | Screw |
| Width | 40.5 mm |
