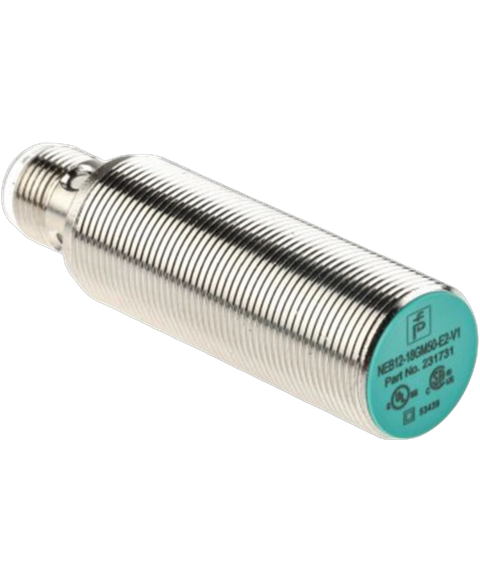

Pepperl+Fuchs NEB12-18GM50-E2-V1
Pepperl+Fuchs NEB12-18GM50-E2-V1 inductive proximity sensor, M18, 12mm, PNP NO, M12 connector, 10-30VDC.
This Pepperl+Fuchs NEB12-18GM50-E2-V1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801438257.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing Material | Brass |
| Length | 69 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Mount | Flush |
| Operating Supply Voltage | 30 V |
| Ratings | IP67 |
| RoHS | Compliant |
| Sensing Method | Inductive |
| Shielding | Unshielded |
| Switching Frequency | 500 Hz |
| Termination | Connector |
