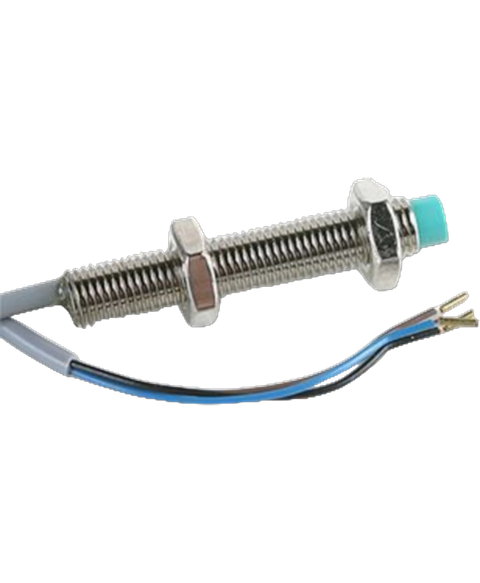

Pepperl+Fuchs NBN4-12GM50-E0
Pepperl+Fuchs NBN4-12GM50-E0 inductive proximity sensor, 4mm, NPN, 10–30VDC.
This Pepperl+Fuchs NBN4-12GM50-E0 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801461685.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing Material | Brass |
| Length | 50 mm |
| Load Current | 200 mA |
| Material | Brass |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 10 V |
| Mount | Flanges, Flush |
| Operating Supply Voltage | 30 V |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Method | Inductive |
| Shielding | Unshielded |
| Switching Frequency | 1.2 kHz |
| Termination | Cable |
