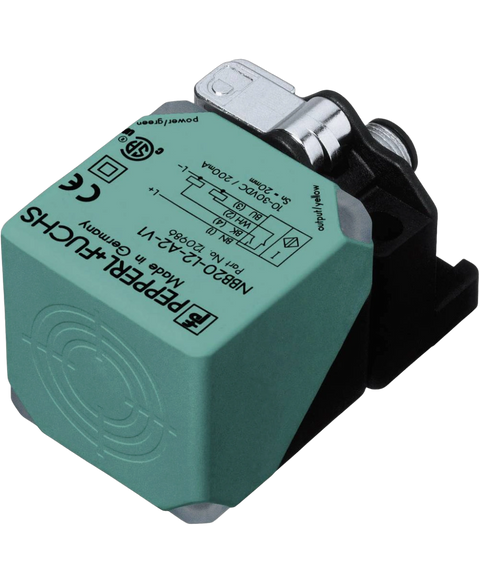

Pepperl+Fuchs NBB20-L2-A2-V1
Inductive proximity sensor, block type, 20mm, PNP.
This Pepperl+Fuchs NBB20-L2-A2-V1 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801475320.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Depth | 67 mm |
| Height | 40 mm |
| Housing Material | Polyamide |
| Length | 40 mm |
| Max Operating Temperature | 85 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 10 V |
| Mount | Flush |
| Number of Pins | 4 |
| Operating Supply Voltage | 30 V |
| Polarity | PNP |
| Ratings | IP69K |
| RoHS | Compliant |
| Switching Current | 200 mA |
| Switching Frequency | 150 Hz |
| Termination | Connector |
| Width | 40 mm |
