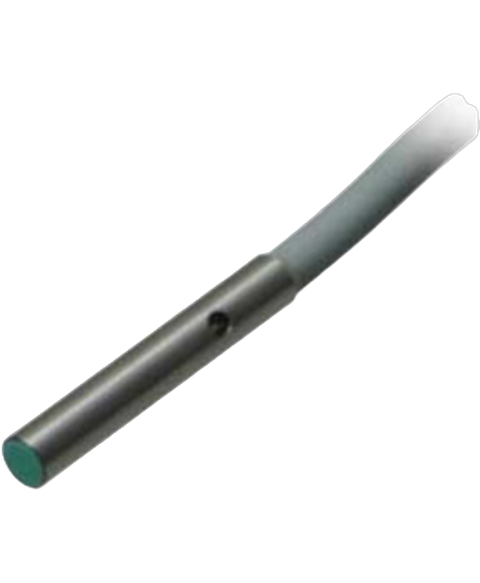

Pepperl+Fuchs NBB0.8-4M25-E2
Pepperl+Fuchs NBB0.8-4M25-E2 inductive proximity sensor, 0.8mm.
This Pepperl+Fuchs NBB0.8-4M25-E2 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801402492.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Cable Length | 2 m |
| Connector Type | Cable |
| Current Rating | 100 mA |
| Housing Material | Stainless Steel |
| Length | 25 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 10 V |
| Operating Supply Voltage | 30 V |
| Ratings | IP67 |
| Resistance | 4.25 MΩ |
| RoHS | Compliant |
| Switching Current | 200 mA |
| Termination | Wire |
