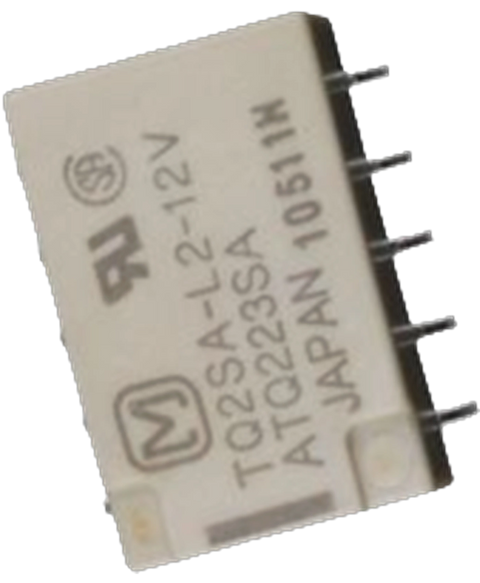

Panasonic TQ2SA-L2-12V
DPDT signal relay, 12VDC coil, 2A, surface mount, TQ series.
This Panasonic TQ2SA-L2-12V is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805325901.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 85 °C |
| Coil Current | 11.7 mA |
| Coil Power | 140 mW |
| Coil Resistance | 1.028 kΩ |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 12 V |
| Contact Current Rating | 2 A |
| Contact Material | Silver |
| Current Rating | 2 A |
| Depth | 11.5 mm |
| Height | 5.9 mm |
| Insertion Loss (dB) | 0.8 dB |
| Lead Free | Lead Free |
| Length | 14 mm |
| Max Current Rating | 2 A |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (AC) | 125 V |
| Max Voltage Rating (DC) | 220 V |
| Min Operating Temperature | -40 °C |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Pins | 10 |
| Operate Time | 4 ms |
| Packaging | Tape & Reel (TR) |
| Power Consumption | 140 mW |
| REACH SVHC | Unknown |
| Relay Type | Telecom |
| Release Time | 4 ms |
| RoHS | Compliant |
| Switching Current | 2 A |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125 V |
| Weight | 2 g |
| Width | 9 mm |
