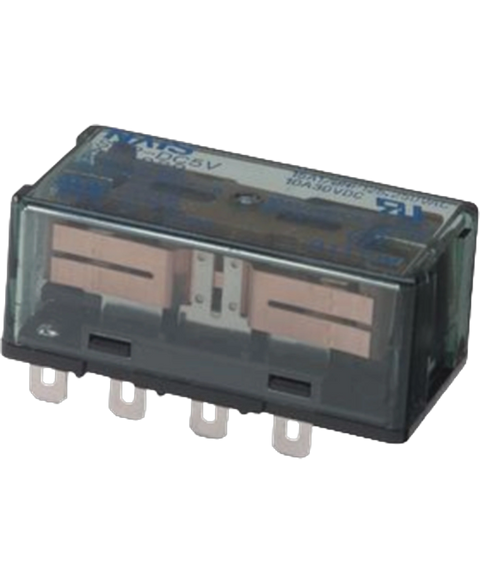

Panasonic SP4-DC12V
Panasonic SP Series Compact Power Relay, 4PDT, 10A, 12VDC
This Panasonic SP4-DC12V is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805314647.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Current | 25 mA |
| Coil Power | 300 mW |
| Coil Resistance | 480 Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12 V |
| Contact Current Rating | 10 A |
| Contact Material | Silver, Tin |
| Depth | 25.6 mm |
| Lead Free | Lead Free |
| Length | 51 mm |
| Max Current Rating | 10 A |
| Max Operating Temperature | 60 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 30 V |
| Min Operating Temperature | -50 °C |
| Mount | Plug-In, Socketable |
| Number of Pins | 14 |
| Operate Time | 30 ms |
| Packaging | Bulk |
| Power Consumption | 300 mW |
| Power Rating | 300 mW |
| REACH SVHC | No |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| RoHS | Compliant |
| Switching Current | 10 A |
| Termination | Quick Connect |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 250 V |
| Weight | 65 g |
| Width | 36.8 mm |
