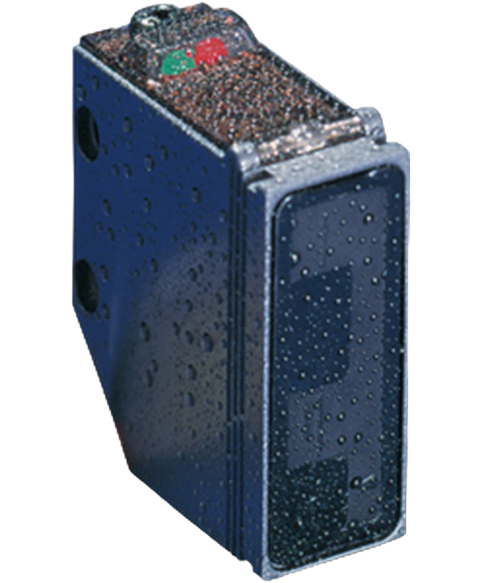

Panasonic RX-LS200
Panasonic RX-LS200-P Triangulation Light Sensor, 50-200mm, PNP, 12-24VDC, Cable, IP67
This Panasonic RX-LS200 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors > Compact photoelectric sensors range and is referenced internally as PartLogic SKU PL26805447200.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Body Material | Zinc |
| Case/Package | Module |
| Housing Material | Zinc |
| Max Operating Temperature | 60 °C |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Screw |
| Number of Pins | 3 |
| Output Type | PNP - Open Collector |
| Ratings | IP67 |
| RoHS | Compliant |
| Sensing Distance | 199.9996 mm |
| Termination | Cable |
| Turn-On Delay Time | 1 ms |
