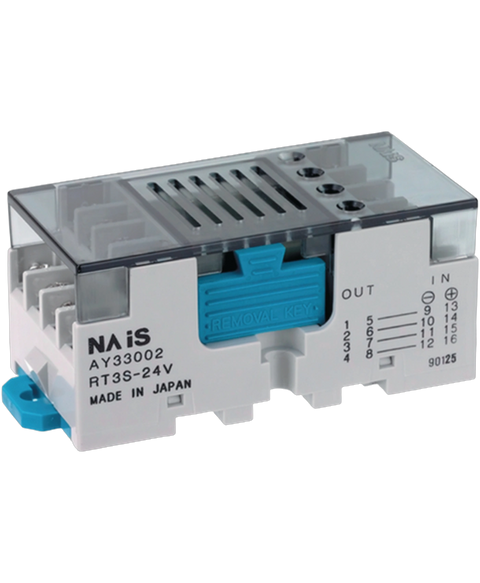

Panasonic RT3S-24V
24VDC DIN rail relay module, SPST-NO, 3A.
This Panasonic RT3S-24V is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805408017.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | Module |
| Coil Current | 7.5 mA |
| Coil Power | 180 mW |
| Coil Resistance | 3.2 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Operating Temperature | 55 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 30 V |
| Min Operating Temperature | -20 °C |
| Mount | DIN Rail |
| Number of Pins | 16 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | 4PST, SPST |
| Weight | 100 g |
