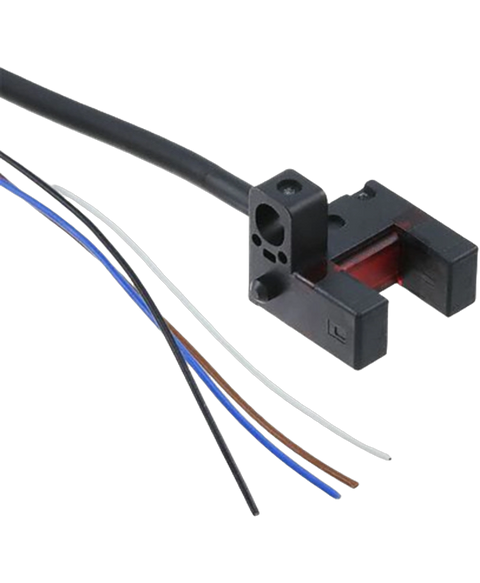

Panasonic PM-R25
Panasonic PM-R25 slot photoelectric sensor, 6mm, NPN.
This Panasonic PM-R25 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric sensors > Slot type range and is referenced internally as PartLogic SKU PL26805422946.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 55 °C |
| Max Operating Temperature | 55 °C |
| Max Supply Voltage | 26.4 V |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage | 4.5 V |
| Min Supply Voltage (DC) | 5 V |
| Mount | Chassis Mount |
| Operating Supply Current | 15 mA |
| Output Configuration | NPN - Open Collector |
| Output Current | 50 mA |
| REACH SVHC | Unknown |
| Response Time | 20 µs |
| RoHS | Compliant |
| Sensing Distance | 6 mm |
