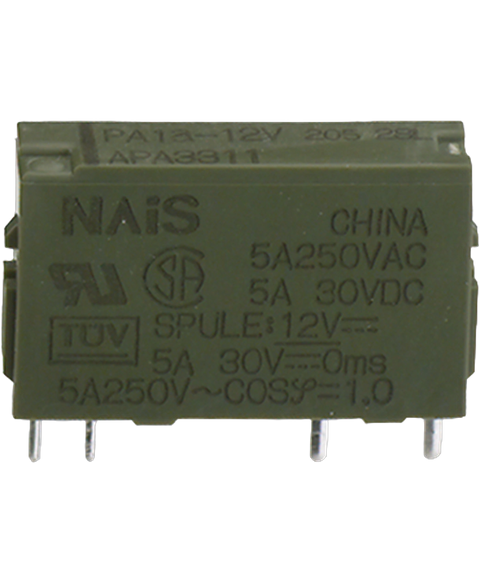

Panasonic PA1a-12V
Panasonic PA1A-12V relay, SPST-NO, 12VDC, 5A, through hole.
This Panasonic PA1a-12V is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26805297871.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Ambient Temperature Range High | 70 °C |
| Case/Package | SIP |
| Coil Current | 10 mA |
| Coil Power | 120 mW |
| Coil Resistance | 1.2 kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12 V |
| Contact Current Rating | 5 A |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Current Rating | 5 A |
| Depth | 5 mm |
| Height | 12.8 mm |
| Lead Free | Lead Free |
| Length | 21 mm |
| Max Current Rating | 5 A |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 250 V |
| Max Voltage Rating (DC) | 110 V |
| Min Operating Temperature | -40 °C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 4 |
| Operate Time | 10 ms |
| Packaging | Bulk |
| Power Consumption | 120 mW |
| Radiation Hardening | No |
| Ratings | IP67 |
| REACH SVHC | No |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| RoHS | Compliant |
| Switching Capacity | 750 W |
| Switching Current | 5 A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250 V |
| Voltage Rating (DC) | 110 V |
| Weight | 3 g |
| Width | 5 mm |
