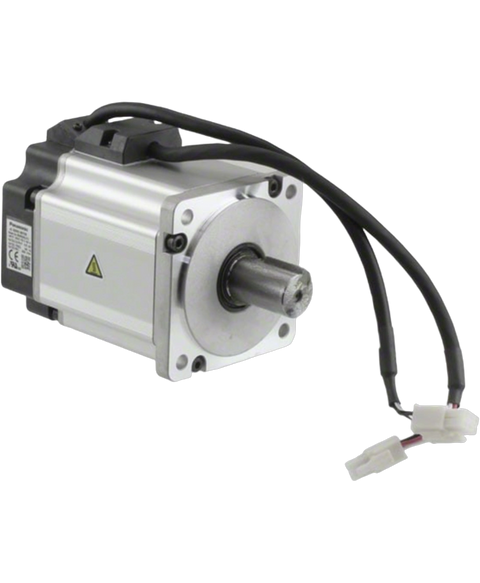

Panasonic MSMD082J1U
The MSMD082J1U servo motor from Panasonic’s MS Series offers efficient performance with a rated output of 750 watts. It operates at 200V AC and supports a maximum speed of 3000 revolutions per minute.
This Panasonic MSMD082J1U is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors > Minas a5 range and is referenced internally as PartLogic SKU PL26805436796.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Panasonic |
| Product Line | MS Series |
| Part Number | MSMD082J1U |
| Weight | 3.00 lbs (1.36 kg) |
| Product | Servo Motor |
| Shaft Type | With key and tap |
| Holding Brake | No |
| Oil Seal | No |
| Encoder Pulse Count | 2500 p/r |
| Ambient Operational Temperature | 0 to 55°C |
| Ambient Storage Temperature | -20 to 80°C |
| Inertia Type | Low Inertia |
| Motor Rated Output | 750 W |
| Voltage Rating | 200V AC |
| Voltage Phase | Single phase |
| Rated Speed | 3000 R/min |
| Encoder Type | Incremental encoder |
| Design Order | Standard |
| Brand | Panasonic |
