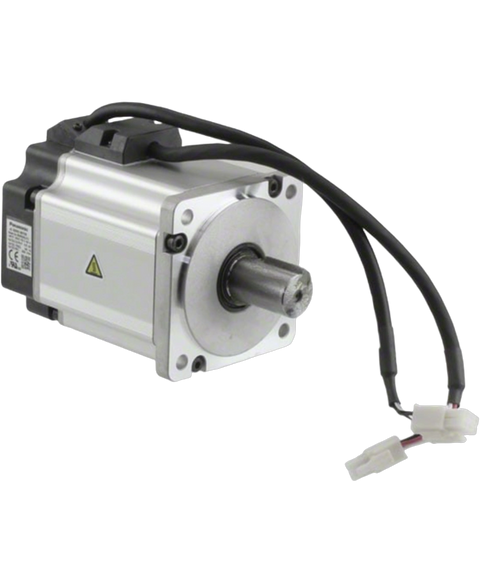

Panasonic MSMD082J1S
750W servo motor, 200VAC, 3000RPM, 7.1Nm torque, IP65, incremental encoder.
This Panasonic MSMD082J1S is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors > Minas a5 range and is referenced internally as PartLogic SKU PL26805285774.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, TUV, UL |
| Encoder Type | Incremental |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Mounting Hole Spacing | 89.9922 mm |
| Power Rating | 750 W |
| RoHS | Compliant |
| RPM | 3000 RPM |
| Termination | Wire Leads |
| Weight | 2.267962 kg |
