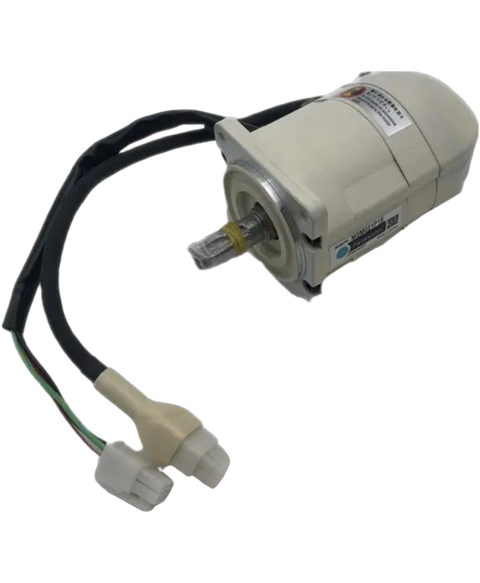

Panasonic MSM022A1EU
The MSM022A1EU is part of Panasonic's MS series and is designed as an AC servo motor. It is built to operate effectively under 3-phase conditions with an input voltage of 92 VAC, delivering a rated power of 0.2 kW (0.27 HP) while running at a frequency of 200 Hz.
This Panasonic MSM022A1EU is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors > Minas a4 range and is referenced internally as PartLogic SKU PL26805420142.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Panasonic |
| Product Line | MS Series |
| Part Number | MSM022A1EU |
| Weight | 1.00 lbs (0.45 kg) |
| Description | AC Servo Motor |
| Number of Phases | 3-phase |
| Input Voltage | 92 VAC |
| Input Current | 1.6 Amps |
| Rated Output (kW) | 0.2 kW |
| Rated Output (HP) | 0.27 HP |
| Rated Frequency | 200 Hz |
| Rated Speed | 3000 RPM |
| Minimum Ambient Operating Temperature | 0°C |
| Maximum Ambient Operating Temperature | 55°C |
| Minimum Ambient Storage Temperature | -10°C |
| Maximum Ambient Storage Temperature | 75°C |
| Minimum Ambient Operating Humidity | 10% RH (without condensation) |
| Maximum Ambient Operating Humidity | 90% RH (without condensation) |
| Operating and Storage Environment | No corrosive gases |
| Brand | Panasonic |
