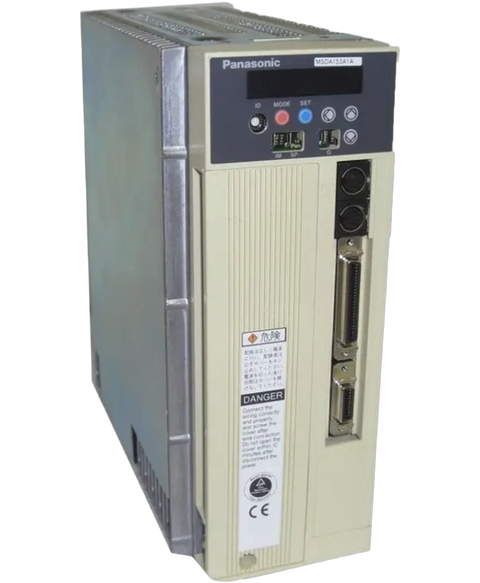

Panasonic MSDA153A1A
The Panasonic MSDA153A1A is an AC servo drive that operates on a 200 V supply voltage in a three-phase configuration. With a power output of 1.5 kW and capable of reaching 3000 revolutions per minute, this drive is engineered for rapid and accurate motion control precision.
This Panasonic MSDA153A1A is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives > Minas a4 range and is referenced internally as PartLogic SKU PL26805445766.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Mitsubishi |
| Product Type | AC Servo Drive |
| Product Line | A Series |
| Part Number | MSDA153A1A |
| Weight | 10.00 lbs (4.54 kg) |
| Mechanical Brake | Not Included |
| Supply Voltage | 3-phase at 200 V |
| Power Output | 1.5 kW |
| Revolution Rating | 3000 r/min |
| Encoder Type | Incremental 2500P/r, 11 wires |
| Control Method | PWM control |
| Frequency Response | 1 kHz |
| Communication Interface | RS-422/485 |
| Cooling Method | Forced air cooling |
| Vibration | Not greater than 5.9 m/s² (0.6G) at 10 to 60 Hz |
| Storage Temperature | -20 to 80˚C (free from condensation) |
| Application Use | Designed for low inertia motion control (typically for fast and accurate movement) |
| Brand | Mitsubishi |
